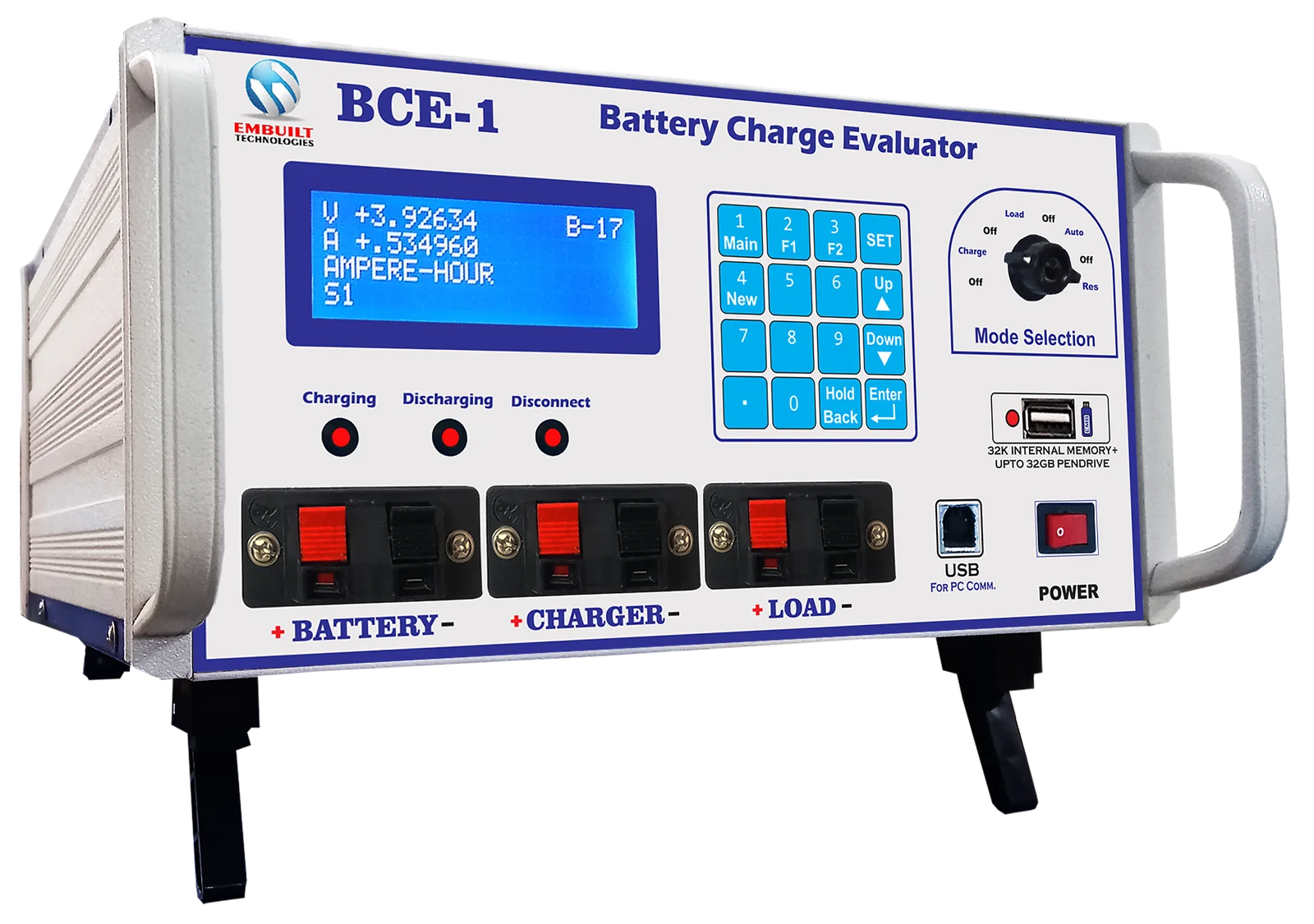

BCE-1 (Battery Charge Evaluator)
BCE-1 (Battery Charge Evaluator) is a battery tester equipment. It provides terminal to charge of a battery by an external charger and measure its charging voltage, current, and mAh (milliampere-Hour). BCE-1 also provides terminal to discharge of a battery by an external load.
Understanding mAh
mAh means milliamp-Hour and is a unit that measures (electric) power over time. It is commonly used to measure the energy capacity of a battery. In general, the more mAh and the longer the battery capacity or battery life.
Operating Modes
BCE-1 has a rotary selector switch to select:
Charging Mode
Measures charging voltage, current, and mAh during battery charging process.
Discharging Mode
Measures discharging parameters when battery is connected to external load.
Auto Mode
Automatically switches between charging and discharging for life testing and R&D analysis.
Auto Mode Operation
In auto mode, BCE-1 charging the battery and after a full charge it automatically switched in discharging. This process mainly used for life testing of the battery and R&D analysis. In software, it shows charging and discharging graphs of all cycles provide useful information for the research field.
Data Measurement and Recording
BCE-1 measures and records all charging and discharging data with real date-time clock in internal memory and on the basis of its analysis, it shows battery milliamp-hour.
Battery Protection Features
BCE-1 has the facility to protect battery on overvoltage and overcurrent. The user has a facility to set voltage and current range in this meter.
Software Integration
BCE-1 also connect with software and share it's measured data. The software has the facility to create a waveform of charging, discharging and mAh.
BCE-1 Description
The BCE-1 Battery Charge Evaluator is a comprehensive battery testing solution designed for precise measurement of charging and discharging parameters. With its versatile operating modes and advanced data recording capabilities, it provides valuable insights for battery performance evaluation, quality control, and research applications.
Key Features
- Charging and discharging terminal connections
- Three operating modes: Charging, Discharging, and Auto
- Real-time measurement of voltage, current, and mAh
- Internal memory with real date-time clock
- Battery protection against overvoltage and overcurrent
- Configurable voltage and current ranges
- Software connectivity for data analysis
- Graphical representation of charging/discharging cycles
Applications
- Battery quality testing and sorting
- Battery life cycle analysis
- Research and development
- Production line testing
- Battery performance evaluation
- R&D analysis for battery optimization
