PTSK-2 catalog - High quality industrial instrument from Embuilt Technologies.

Ask Experts
Download Brochure

Technical datasheet & User guide

1 Year Warranty Against Manufacturing Defects
Standard coverage
Ships within Two days of Confirmed Order
Global delivery
09:00 AM - 05:00 PM (Mon-Sat)
Expert assistance

Product Overview

Official Catalog

Download PDF

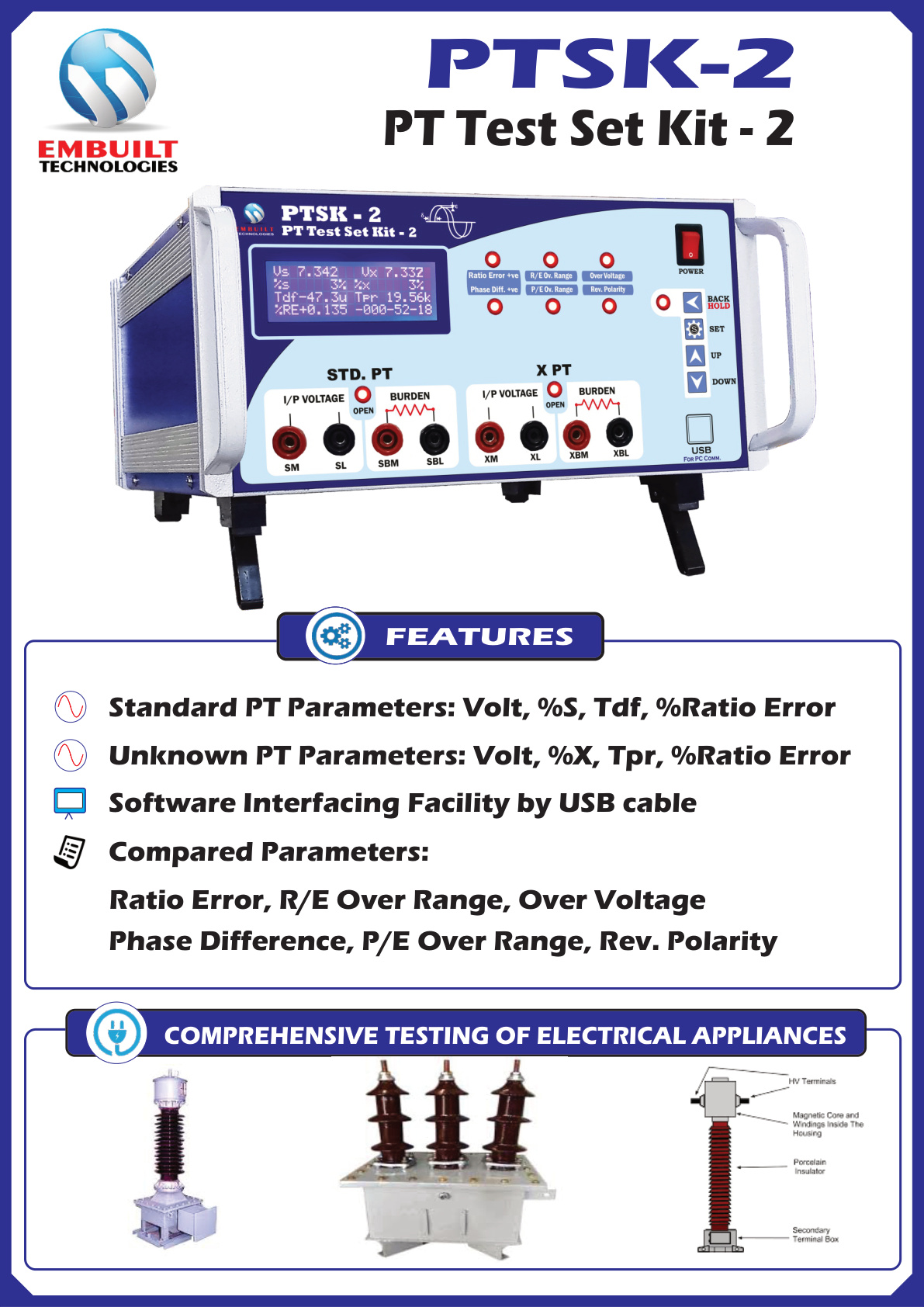

PTSK-2 catalog.pdf Page 1
PTSK-2 catalog.pdf Page 2
Key Features & Introduction
  • PT Test Set Kit - 2
  • PTSK-2
  • COMPREHENSIVE TESTING OF ELECTRICAL APPLIANCES
  • Standard PT Parameters: Volt, %S, Tdf, %Ratio Error
  • Unknown PT Parameters: Volt, %X, Tpr, %Ratio Error
  • Compared Parameters:
  • Ratio Error, R/E Over Range, Over Voltage
  • Phase Difference, P/E Over Range, Rev. Polarity
  • Software Interfacing Facility by USB cable
  • Developed & Manufactured By :
  • EMBUILT TECHNOLOGIES
  • A-404,Vaishali Nagar,
  • Jaipur-302021, Rajasthan, INDIA
  • Mob.
  • E-mail
  • Website : http://www.embuilt.com
  • : +91-7524853539
  • info@embuilt.com
  • MANUAL
  • Power cable
  • Manual
  • Patch Cords
  • Software CD
  • USB cable

Technical Specifications

Technical Specifications
  • X AC Input Voltage
  • Resolution for
  • Phase measurement 1” second
  • 5.0 - 300 V, 45 - 55 Hz
  • STD. AC Input Voltage
  • Voltage Accuracy Class 0.1 for 5V to 50V
  • Class 0.2 for 50V to 300V
  • 5.0 - 300 V, 45 - 55 Hz
  • Unknown Burden
  • Primary Voltage (eg:-11 KV Line)
  • PT-std
  • PT-x
  • LED ON indicate
  • Over Voltage
  • LED ON indicate
  • R/E Ov. Range
  • Reverse Polarity
  • Meter
  • Power Switch
  • Back to Main page
  • Hold the screen
  • Setting menu
  • Increase values
  • Decrease values
  • USB port for
  • computer interfacing
  • Main Display
  • to shows
  • Std. & X PT
  • Parameters
  • LED ON indicate
  • Phase Error
  • Over Range +ve
  • Unknown
  • Burden/Load
  • Standard
  • Burden/Load
  • ORDERING CODE
  • PTSK -2 /P2
  • PT Test Set
  • Single Phase
  • 2 =
  • 5 =
  • 0.2 Amp
  • 0.5 Amp
  • 2.0 Amp
  • 5.0 Amp
  • 10.0 Amp
  • Input Current
  • Features:
  • Interface with PC
  • SOFTWARE
  • Standard Burden
  • 0 (open terminal) to 500VA Max
  • 0 (open terminal) to 500VA Max
  • 1 Revolution
  • contains
  • 360 degree
  • 1 angle
  • 1 (degree) = 60’ (Arc minutes)
  • 60’ (Arc minutes) = 60” (Arc seconds)
  • LED ON indicate
  • Terminals Open
  • LED ON indicate
  • Terminals Open
  • Ref: 2022-06-09
