LED Driver Testing and Analysis
Total Harmonics Distortion Power Meter-2
IN STOCK
(4.8 Reviews)
Total Harmonics Distortion Power Meter-2 Measures : Volt, Amps, Watt, PF, Hz, THD (Harmonics). with color TFT display, data logging in pendrive, pass fail indication with tower light
Download Brochure
Datasheet & User guide
1 Year Warranty Against Manufacturing Defects
Standard coverageShips within Two days of Confirmed Order
Global delivery09:00 AM - 05:30 PM (Mon-Sat)
Expert assistanceProduct Overview

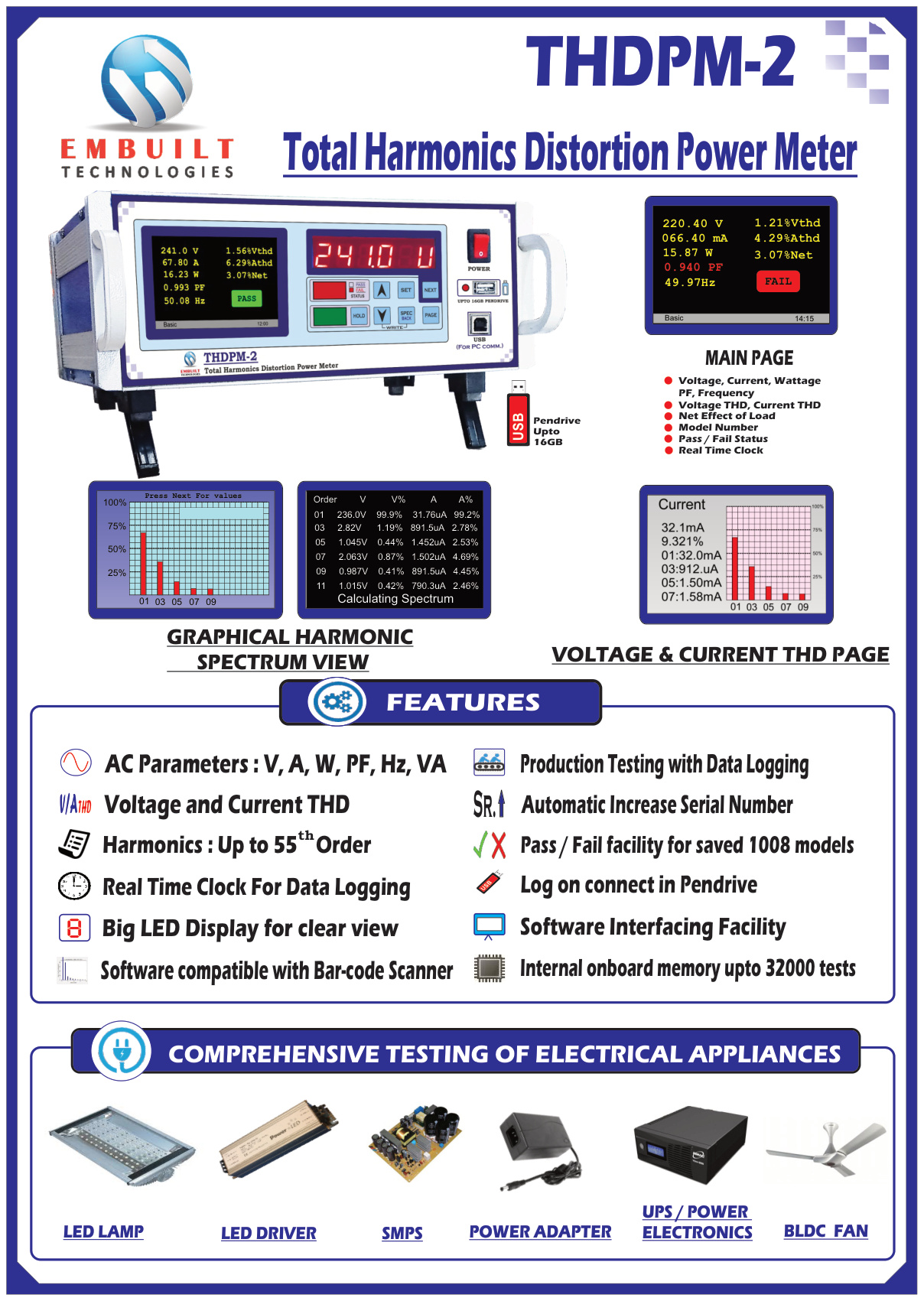

Official Catalog
Download PDF
Key Features & Introduction
- Measures : Volt, Amps, Watt, PF, Hz, THD (Harmonics),
- Data Storage : Inbuilt Memory (32K test reports) + USB Pendrive Support
- Connectivity : USB Port For PC/Laptop & RS-485 for RPM Sensor
- Software : PC Software With Barcode Scanner Support
- Tolerance Setting : Set limits for Electrical Parameters, THD and RPM
- Pass Fail Indication : Tower light with Red/Green + Relay O/P For PLC Signaling
- Auto Serial : Increments Automatically For Each Test
- Modes :-
- 1. Production - Auto Serial, Fast Test, Pass/Fail Indication
- 2. R&D -
- Detailed Parameters of THD report & Spectrum Analysis
- 3. Data Logging -
- Continuous Recording
- LED driver and street light testing
- ADVANCED TEST BENCH FOR CEILING FANS, BLDC MOTORS &
- AIR COOLERS
- Pendrive Upto 32GB
- BLDC Fan Testing 1-Phase Motor Testing Exhaust Fan Testing
Technical Specifications
Technical Specifications
Auxiliary Power
AC Input Voltage: 180 – 250V, 50Hz
AC Input Measurement
Voltage Range: 5.0 – 500V, 45 – 55Hz
Optional: 45 – 65Hz, 600V range available
Current Range: 5mA – 2A ( Range is customisable )
Harmonics
Measurement up to 55th Order
Accuracy
Electrical Parameters: Class 0.2
THD Accuracy: 1.0%
Display Resolution
480X320 Pixal ( Color TFT Display)
Communication Interface
USB (Optically Isolated)
Data Storage
Internal Memory: Up to 32,000 records
External Storage: Pen Drive up to 32GB
