BRIC-1
Hot
Battery Testing

BRIC-1

IN STOCK
(4.8 Reviews)

BRIC-1 - High quality industrial instrument from Embuilt Technologies.

Ask Experts
Download Brochure

Technical datasheet & User guide

1 Year Warranty Against Manufacturing Defects
Standard coverage
Ships within Two days of Confirmed Order
Global delivery
09:00 AM - 05:00 PM (Mon-Sat)
Expert assistance

Product Overview

Official Catalog

Download PDF

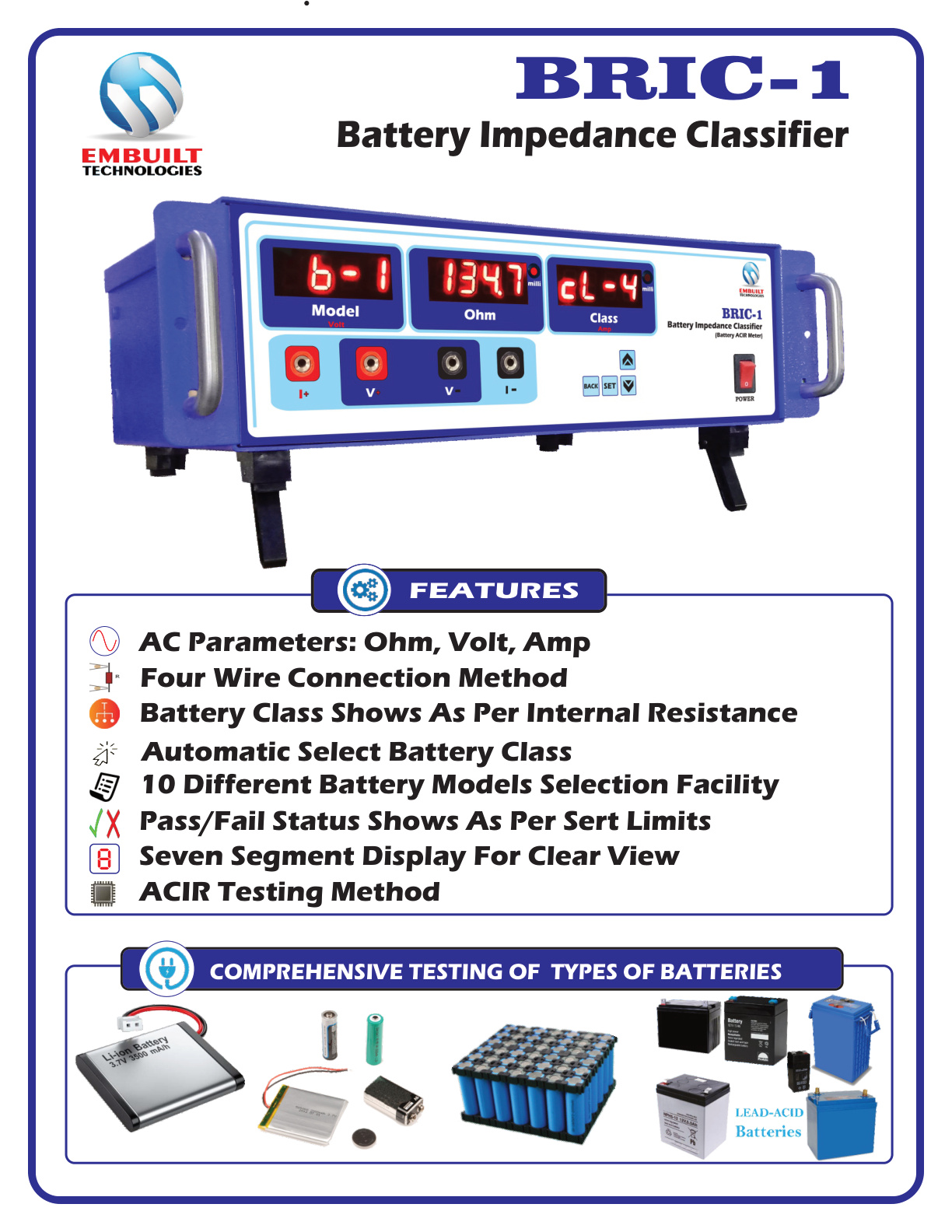

BRIC-1.pdf Page 1

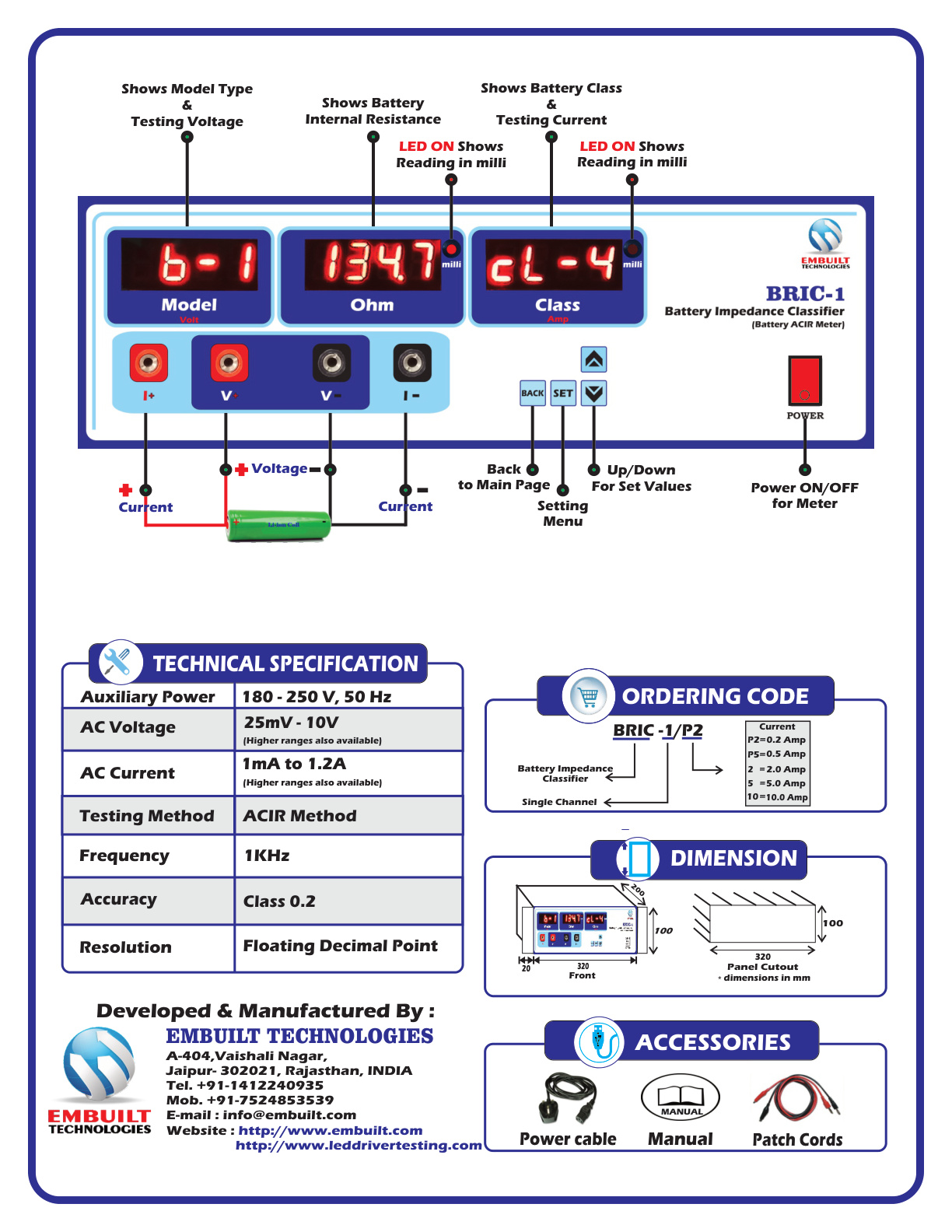

BRIC-1.pdf Page 2
Key Features & Introduction
  • Battery Impedance Classifier
  • BRIC-1
  • COMPREHENSIVE TESTING OF TYPES OF BATTERIES
  • ACIR Testing Method
  • AC Parameters: Ohm, Volt, Amp
  • Automatic Select Battery Class
  • 10 Different Battery Models Selection Facility
  • Four Wire Connection Method
  • Seven Segment Display For Clear View
  • Battery Class Shows As Per Internal Resistance
  • Pass/Fail Status Shows As Per Sert Limits
  • Auxiliary Power
  • 1mA to 1.2A
  • 180 - 250 V, 50 Hz

Technical Specifications

Technical Specifications
  • AC Current
  • (Higher ranges also available)
  • Resolution
  • Floating Decimal Point
  • 25mV - 10V
  • AC Voltage
  • Accuracy
  • Class 0.2
  • (Higher ranges also available)
  • Testing Method
  • Frequency
  • 1KHz
  • MANUAL
  • Power cable
  • Manual
  • Patch Cords
