CEHA-1 is a high-precision EV Charger Testing Instrument designed to measure AC parameters, DC parameters, Efficiency, and Harmonics (up to 55th order) in a single unit. It is ideal for EV charger manufacturers, R&D labs, and quality control departments requiring accurate performance and compliance testing.

Ask Experts

Download Brochure Datasheet & User guide

1 Year Warranty Against Manufacturing Defects

Standard coverage

Ships within Two days of Confirmed Order

Global delivery

09:00 AM - 05:30 PM (Mon-Sat)

Expert assistance

Product Overview

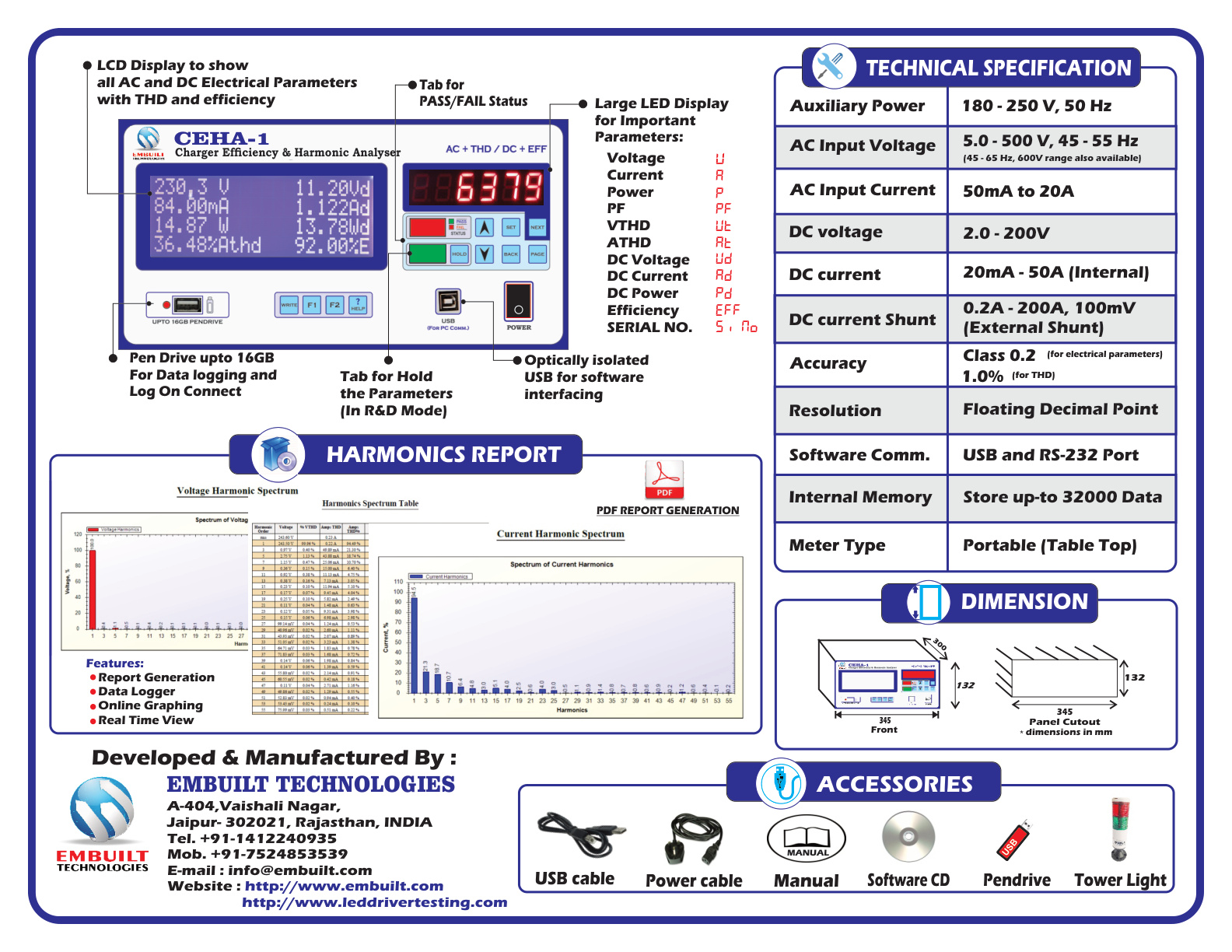

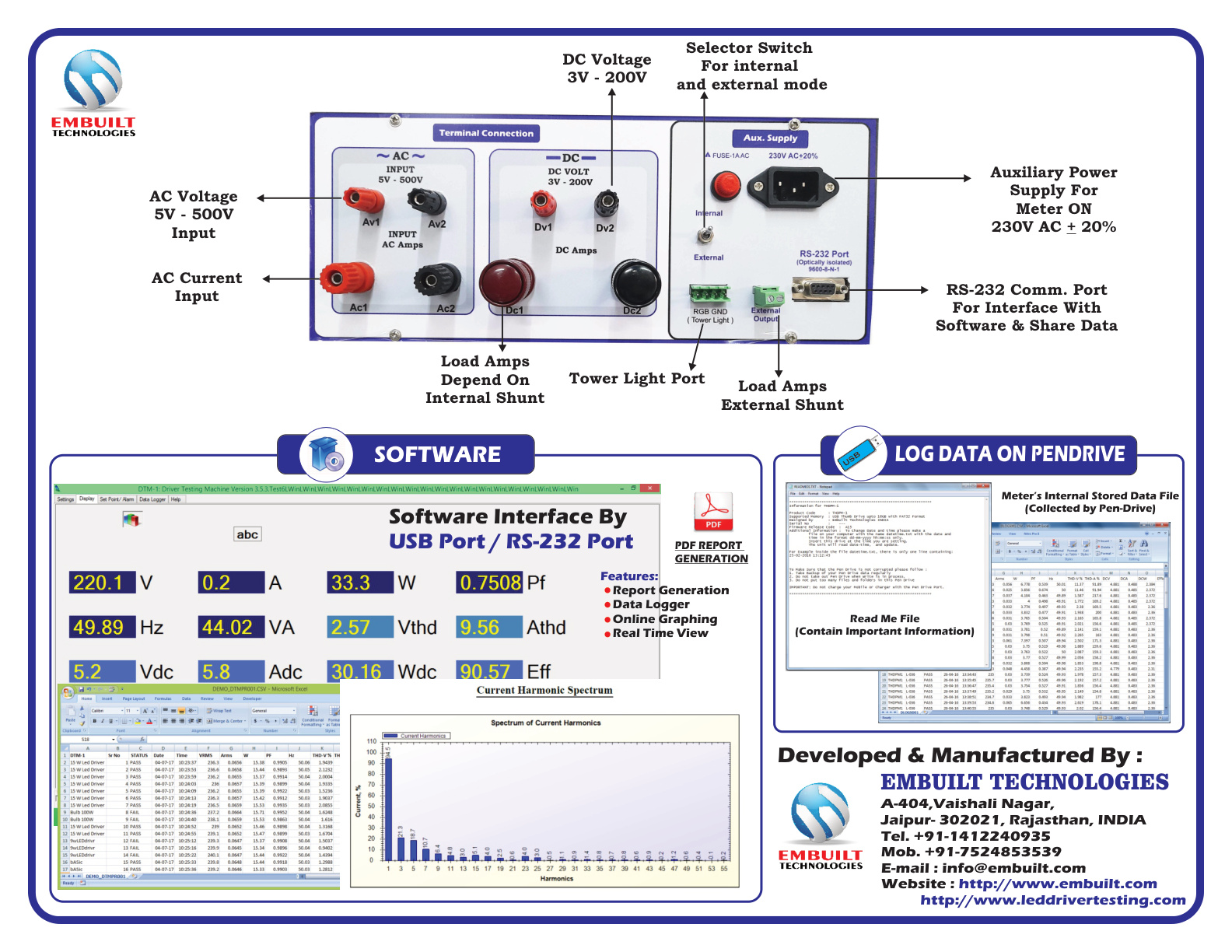

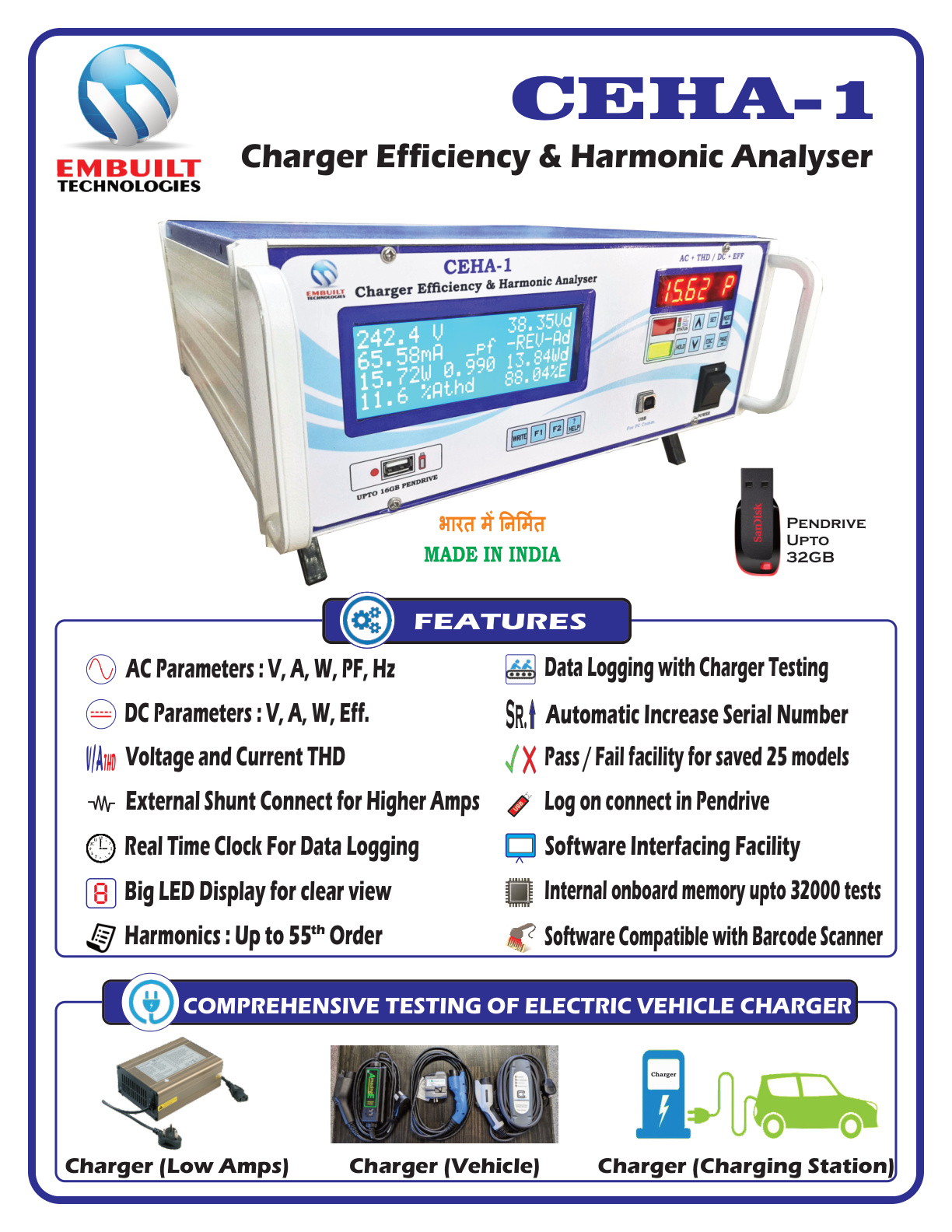

Official Catalog

Download PDF

CEHA-1 is a high-precision EV Charger Testing Instrument designed to measure AC parameters, DC parameters, Efficiency, and Harmonics (up to 55th order) in a single unit. It is ideal for EV charger manufacturers, R&D labs, and quality control departments requiring accurate performance and compliance testing.

🔹 Key Highlights

Measures AC: V, A, W, PF, Hz, VTHD, ATHD
Measures DC: Voltage, Current, Power, Efficiency
Harmonic analysis up to 55th order
Internal memory up to 32,000 test records
Pen drive data logging (up to 32GB)
Pass/Fail facility for 25 saved models
External shunt support up to 200A
USB & RS-232 software interfacing
PDF report generation & real-time graphing
Large LED display with clear parameter view

Technical Specifications

Auxiliary Power

AC Input Voltage: 180 – 250V, 50Hz

AC Input Measurement

Voltage Range: 5.0 – 500V, 45 – 55Hz
Optional: 45 – 65Hz, 600V range available
Current Range: 50mA – 20A

DC Measurement

DC Voltage: 2.0 – 200V
DC Current (Internal): 20mA – 50A
DC Current (External Shunt):
0.2A – 200A, 100mV Shunt

Harmonics

Measurement up to 55th Order

Accuracy

Electrical Parameters: Class 0.2
THD Accuracy: 1.0%

Resolution

Floating Decimal Point

Communication Interface

USB (Optically Isolated)
RS-232 Port

Data Storage

Internal Memory: Up to 32,000 records
External Storage: Pen Drive up to 32GB
