DC DPA-1
DC-DPA-1 is a precision DC Digital Power Analyzer designed to measure DC Voltage (V), DC Current (A), and DC Power (W) with high accuracy and reliability.
1 Year Warranty Against Manufacturing Defects
Standard coverageShips within Two days of Confirmed Order
Global delivery09:00 AM - 05:30 PM (Mon-Sat)
Expert assistanceProduct Overview

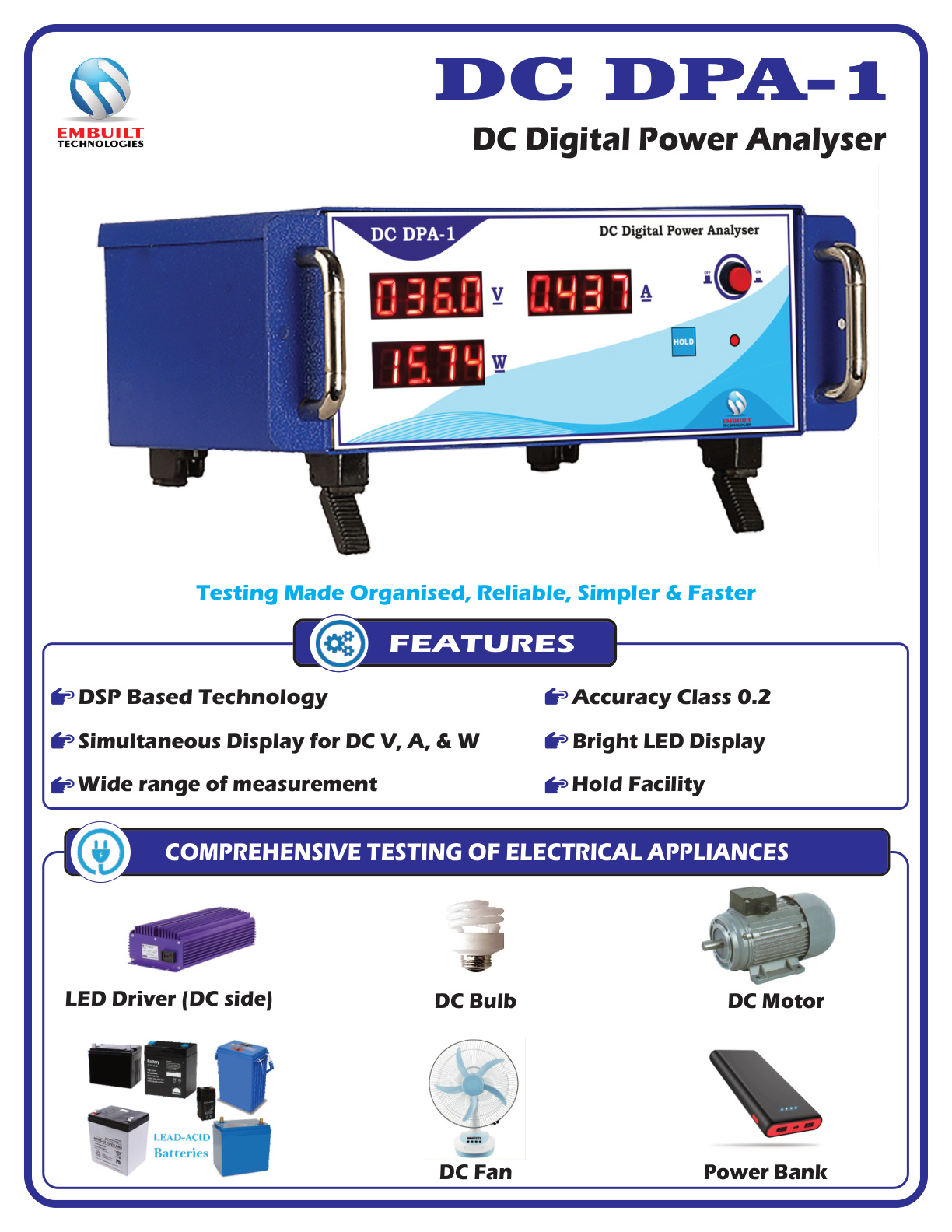

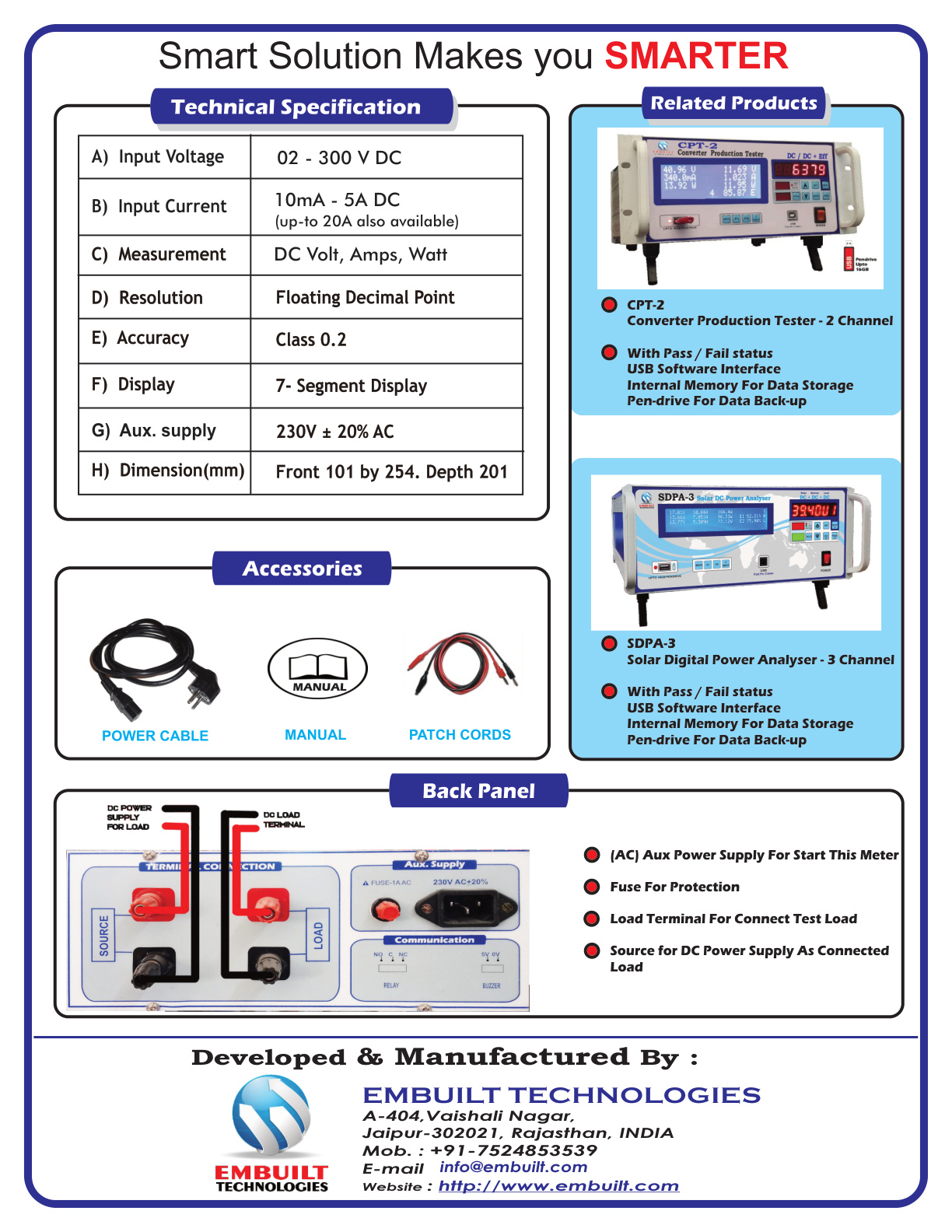

Official Catalog
Download PDFProduct Description
DC-DPA-1 is a precision DC Digital Power Analyzer designed to measure DC Voltage (V), DC Current (A), and DC Power (W) with high accuracy and reliability.
The unit is specially designed with Source and Load terminal connections, where:
-
The Source Side connects to an external DC power supply (no inbuilt supply in the meter).
-
The Load Side connects to the DC-operated load for real-time measurement.
This design makes the DC-DPA-1 ideal for testing, validation, R&D, and production line applications involving DC-powered equipment.
Key Features
-
✔ Accurate measurement of DC Voltage, Current & Power
-
✔ Separate Source & Load Terminals
-
✔ Compact & Panel Mount Design
-
✔ Suitable for Industrial & Laboratory Applications
Technical Specifications
Measured Parameters
-
DC Voltage (V)
-
DC Current (A)
-
DC Power (W)
Measurement Range
-
Voltage: Up to 200 VDC
(Up to 400 VDC available as per customer request) -
Current: Up to 5 Amps
(Up to 20 Amps available as per customer request) -
Power:
Calculated DC Watts (V × A)
Supply Requirements
-
Measurement Supply: External DC Source Required
(No inbuilt DC supply in the meter) -
Auxiliary Supply (For Machine ON):
220V AC ±10%
Connection Type
-
Dedicated Source & Load Terminals
Applications
-
DC Power Supply Testing
-
Battery Testing Systems
-
Solar DC System Monitoring
-
SMPS Testing
-
Industrial DC Equipment Validation
-
R&D and Production Line Testing
