Solar I-V Curve Tracer (SIVCT-1)
Solar I-V Curve Tracer (SIVCT-1) - EMBUILT SIVCT-1 is used for testing, maintenance and finding efficiency of various parameters of solar panels and cells. Analyzer can be used to design Solar System to generate specific power. It can identify Solar Power System requirement, best angle of Solar Panel installation and Broken / Worn-out cells
1 Year Warranty Against Manufacturing Defects
Standard coverageShips within Two days of Confirmed Order
Global delivery09:00 AM - 05:30 PM (Mon-Sat)
Expert assistanceProduct Overview

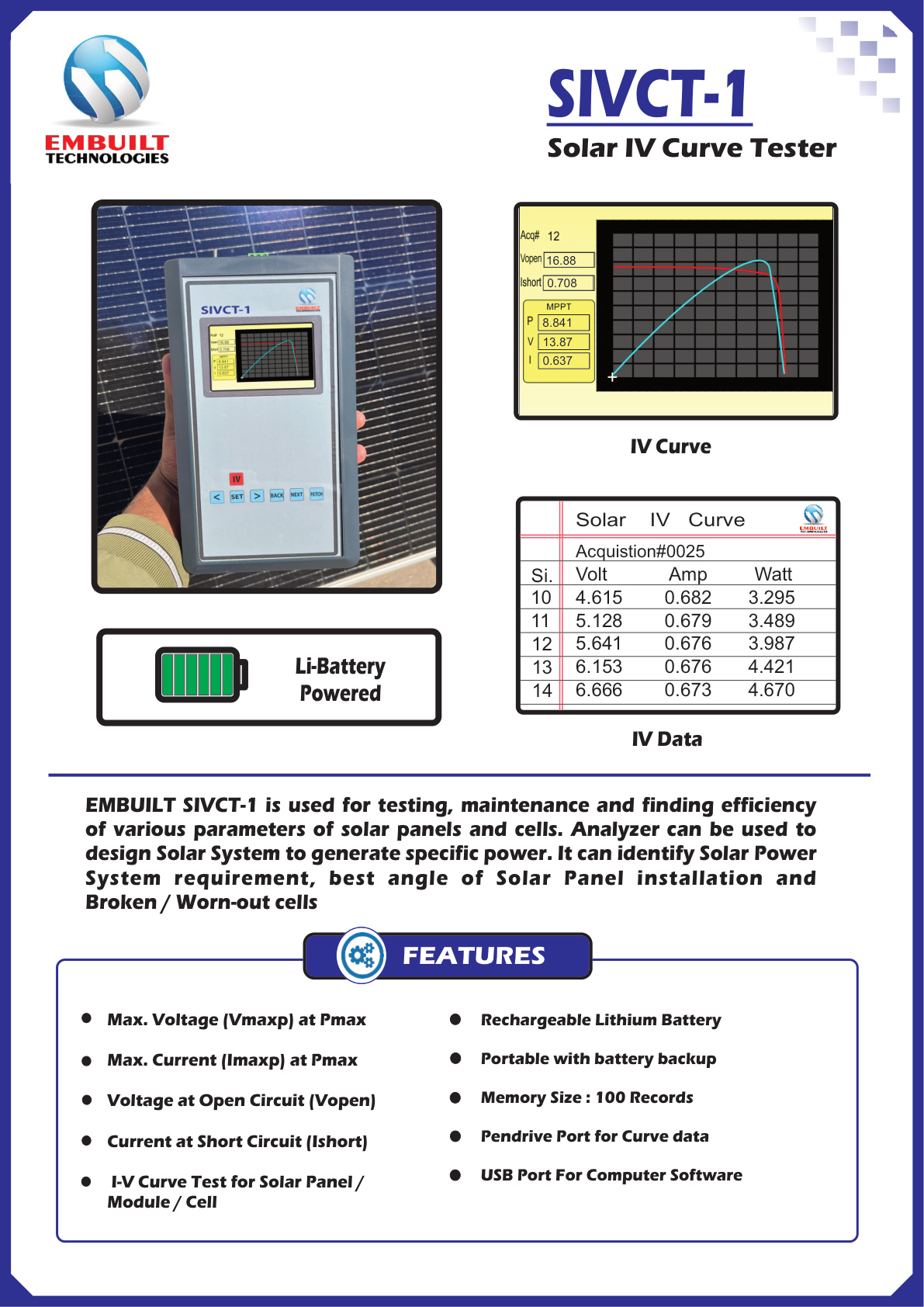

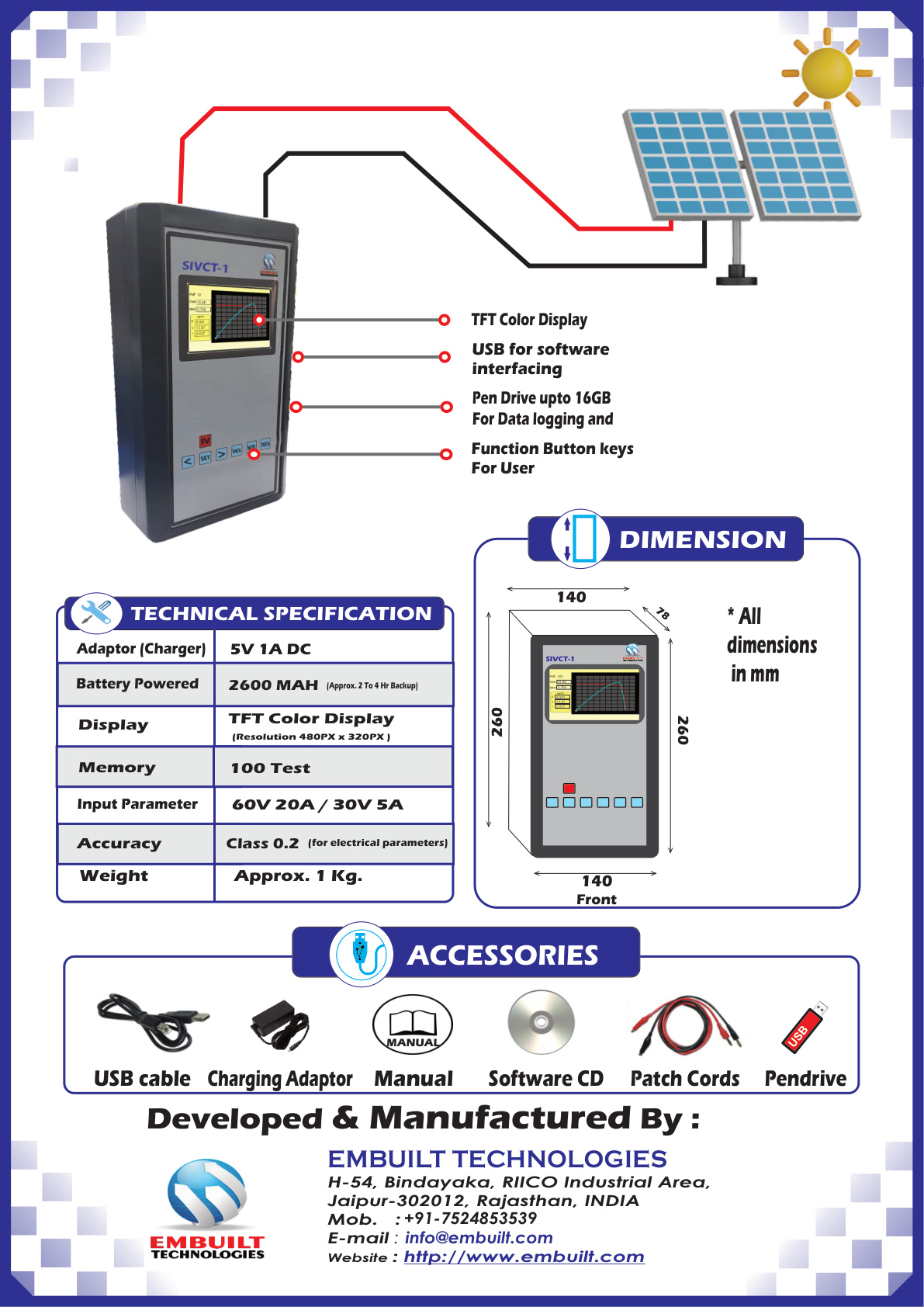

Official Catalog
Download PDF
Key Features & Introduction
- I-V Curve Test for Solar Panel / Module / Cell
- Rechargeable Lithium Battery.
- Display- TFT Color Display,( Resolution- 480X320 pixel ).
- Internal Memory.
- USB for software interfacing
- Function Button keys For User
- Pen Drive upto 32GB
- Software for data logging in pc
Technical Specifications
Technical Specifications
Accuracy- Class 0.2
Measured parameters- (Vmaxp) at Pmax, (Imaxp) at Pmax, power mppt, Draw curve between I and V, Voltage at Open Circuit, Current at Short Circuit.
Battery- 2600mah
Display- TFT Color Display,( Resolution- 480X320 pixel )
Memory- up tp 32000 test.
Adaptor (Charger)- 5V 1A DC
Input Parameter- 60V 20A / 30V 5A ( range is customisable)
Pen Drive port- Support upto 32GB
Battery Backup- (Approx. 2 To 4 Hr Backup)
Weight- Approx. 1 Kg.
Dimensions- 140(W)X260(L)X78(D).
