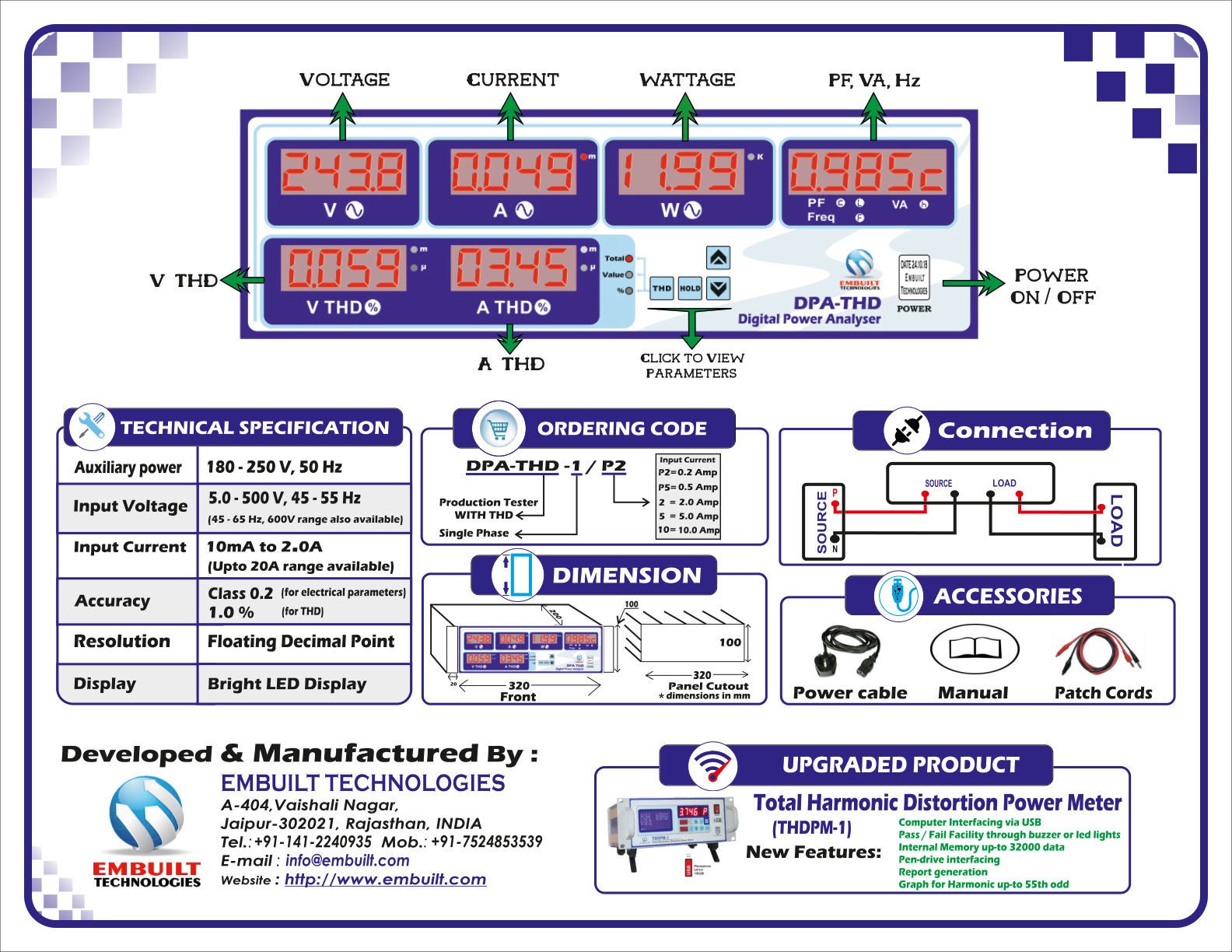

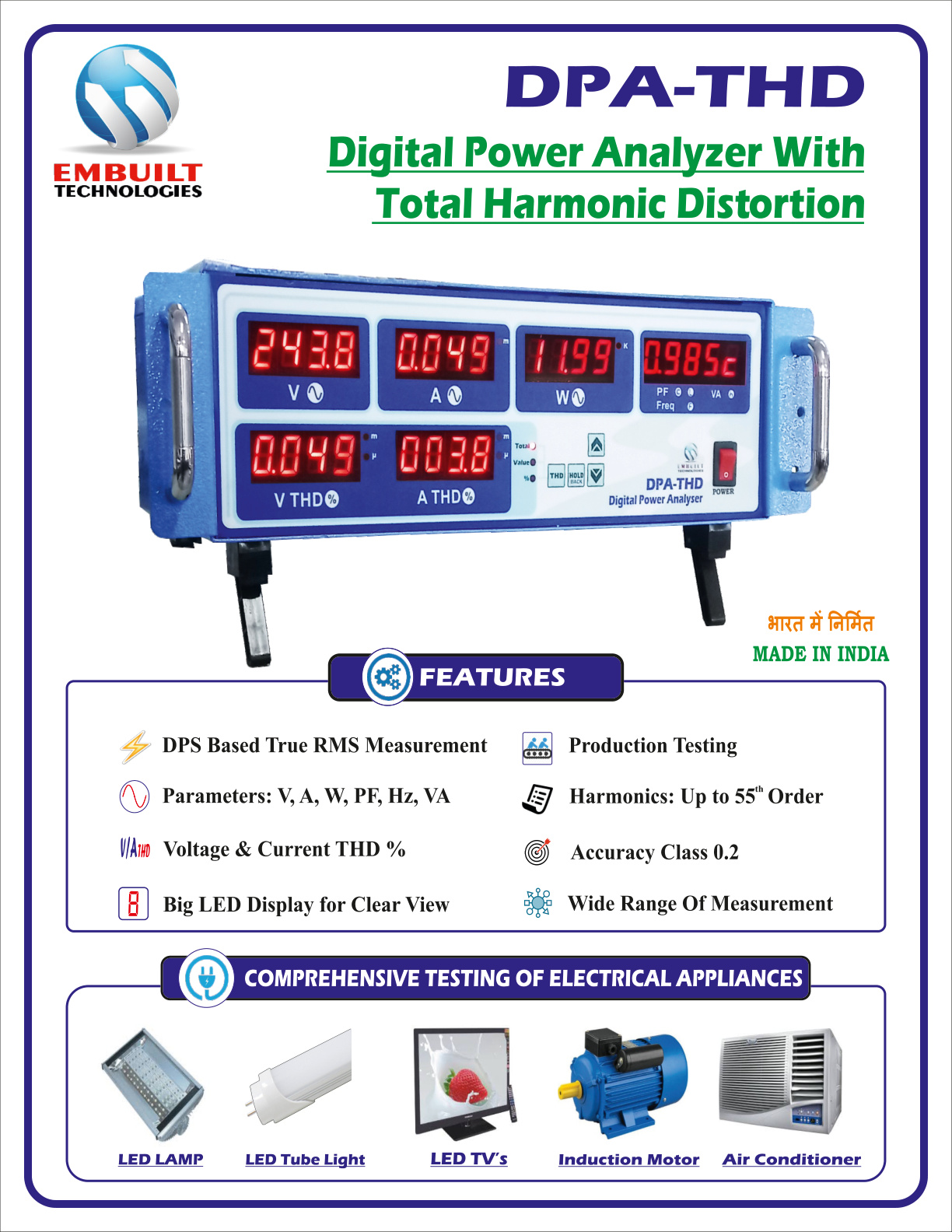

DPA-THD (Single Phase Production Tester with THD Measurement)

DPA-THD is a high-precision Digital Power Analyzer designed for detailed AC parameter measurement and harmonic analysis in industrial and laboratory environments.

---

Measured Parameters

The device measures complete AC electrical parameters including:

• Voltage (V)

• Current (A)

• Power (W)

• Power Factor (PF)

• Frequency (Hz)

• Voltage THD (V-THD)

• Current THD (A-THD)

---

Design & Application

DPA-THD features a Source–Load connection type architecture, making it ideal for:

• LED Driver Testing

• SMPS Testing

• Adapter Testing

• Production Line Quality Control

• Harmonic Analysis Applications

---

AC Measurement Range

• Voltage: Up to 500V AC

• Maximum Current Capacity: Up to 10 Amps

Available standard models:

• 2 Amps Model

• 5 Amps Model

• 10 Amps Model

Selectable AC current range is provided for improved accuracy and better resolution during testing.

Lower current range models are also available on request.

---

Customization Option

Users are requested to specify the required voltage and current range before placing the order.

We can customize the unit as per required voltage and ampere range to suit specific testing applications.

---

Upgraded Models Available

For enhanced performance and advanced harmonic analysis capability:

• THDPM-1

• THDPM-2
