TH-Display-cat

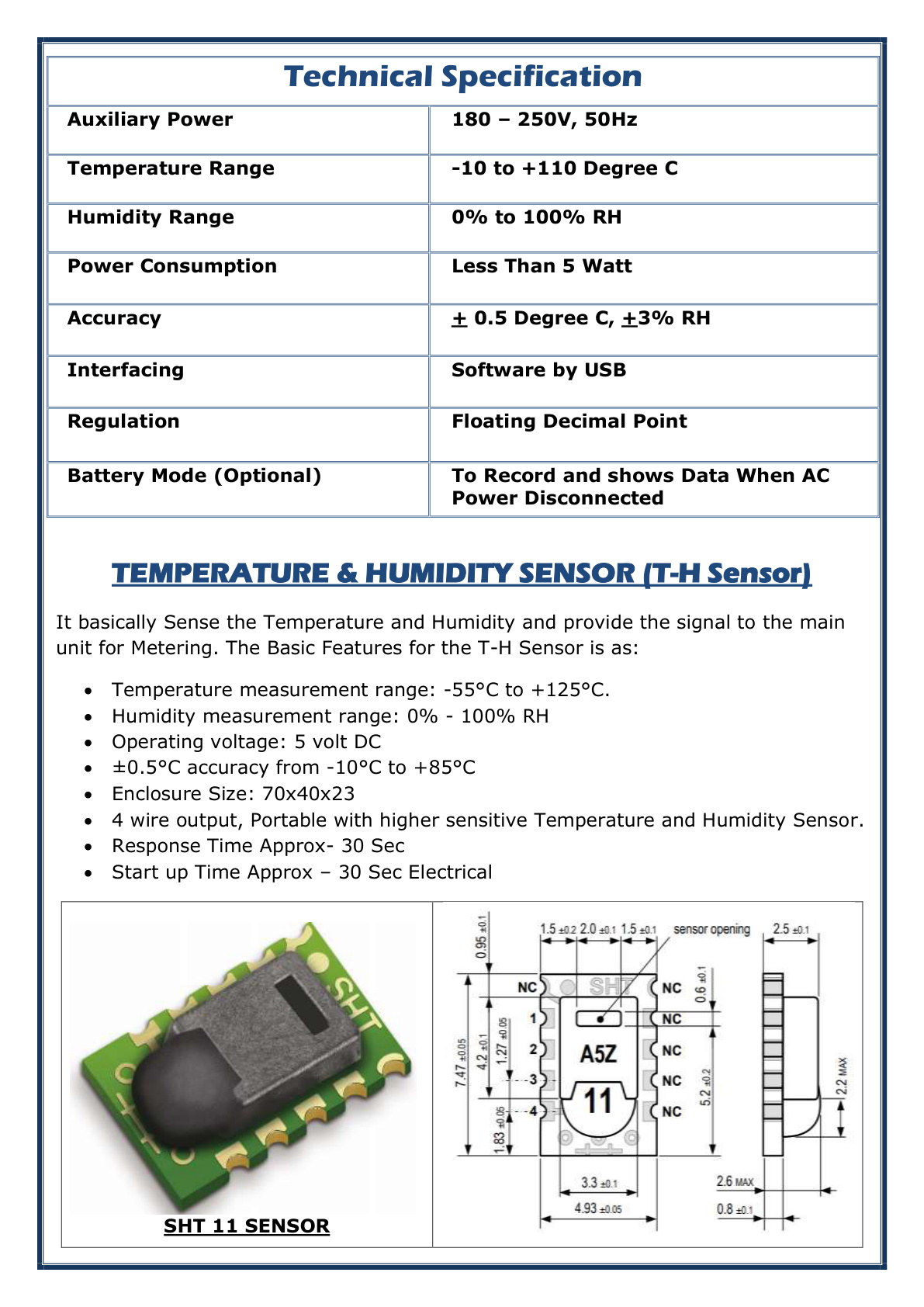

Technical Specifications

• Auxiliary Power
• 180 – 250V, 50Hz
• Temperature Range
• 10 to +110 Degree C
• Humidity Range
• 0% to 100% RH
• Power Consumption
• Less Than 5 Watt
• Accuracy
• + 0.5 Degree C, +3% RH
• Interfacing
• Software by USB
• Regulation
• Floating Decimal Point
• Battery Mode (Optional)
• To Record and shows Data When AC
• Power Disconnected
• TEMPERATURE & HUMIDITY SENSOR (T-H Sensor)
• It basically Sense the Temperature and Humidity and provide the signal to the main
• unit for Metering. The Basic Features for the T-H Sensor is as:
•  Temperature measurement range: -55°C to +125°C.
•  Humidity measurement range: 0% - 100% RH
•  Operating voltage: 5 volt DC
•  ±0.5°C accuracy from -10°C to +85°C
•  Enclosure Size: 70x40x23
•  4 wire output, Portable with higher sensitive Temperature and Humidity Sensor.
•  Response Time Approx- 30 Sec
•  Start up Time Approx – 30 Sec Electrical
• SHT 11 SENSOR

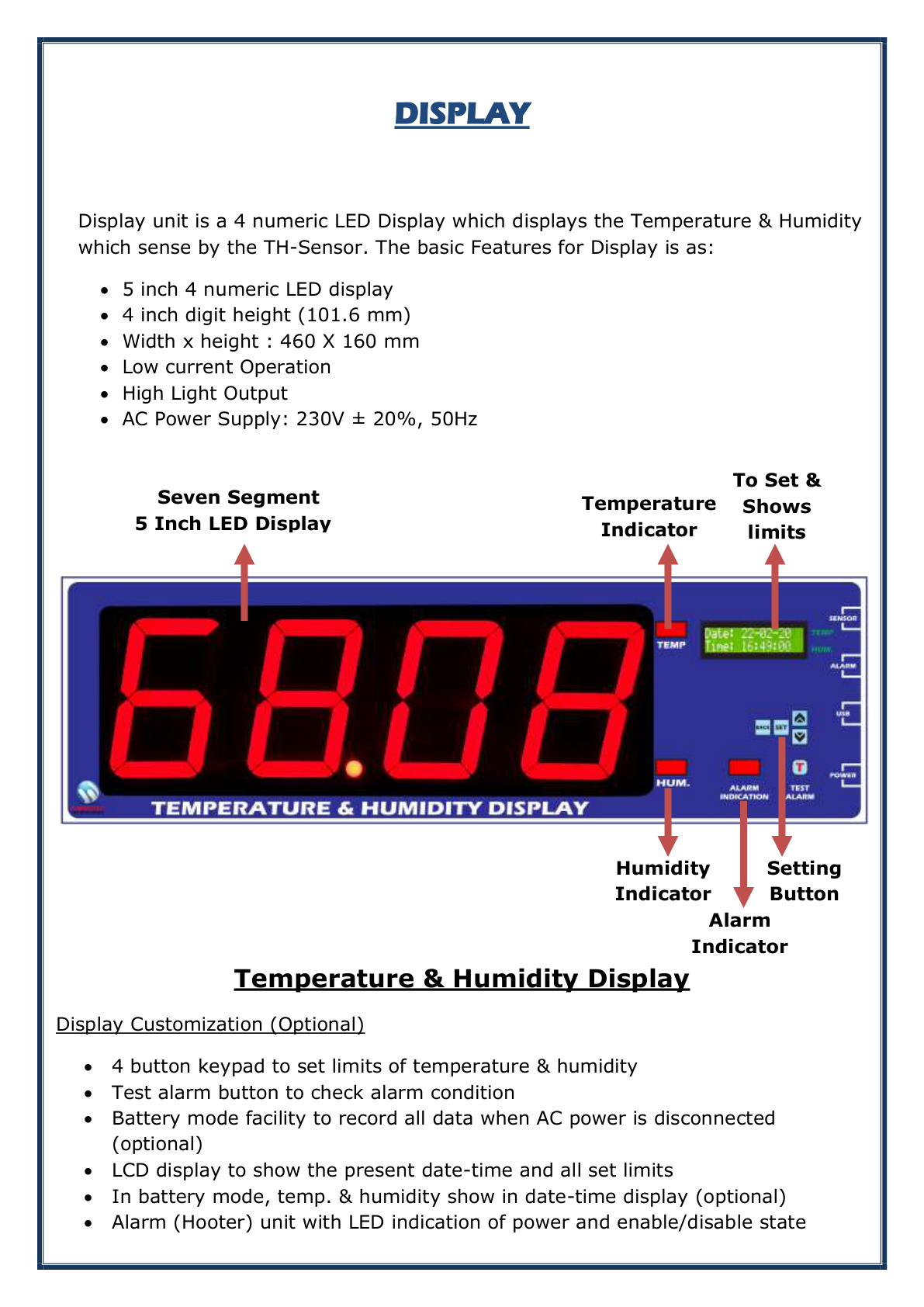

• DISPLAY
• Display unit is a 4 numeric LED Display which displays the Temperature & Humidity
• which sense by the TH-Sensor. The basic Features for Display is as:
•  5 inch 4 numeric LED display
•  4 inch digit height (101.6 mm)
•  Width x height : 460 X 160 mm
•  Low current Operation
•  High Light Output
•  AC Power Supply: 230V ± 20%, 50Hz
• Temperature & Humidity Display
• Display Customization (Optional)
•  4 button keypad to set limits of temperature & humidity
•  Test alarm button to check alarm condition
•  Battery mode facility to record all data when AC power is disconnected
• (optional)
•  LCD display to show the present date-time and all set limits
•  In battery mode, temp. & humidity show in date-time display (optional)
•  Alarm (Hooter) unit with LED indication of power and enable/disable state
• Seven Segment
• 5 Inch LED Display
• Temperature
• Indicator
• Humidity
• Indicator
• Alarm
• Indicator
• To Set &
• Shows
• limits
• Setting
• Button

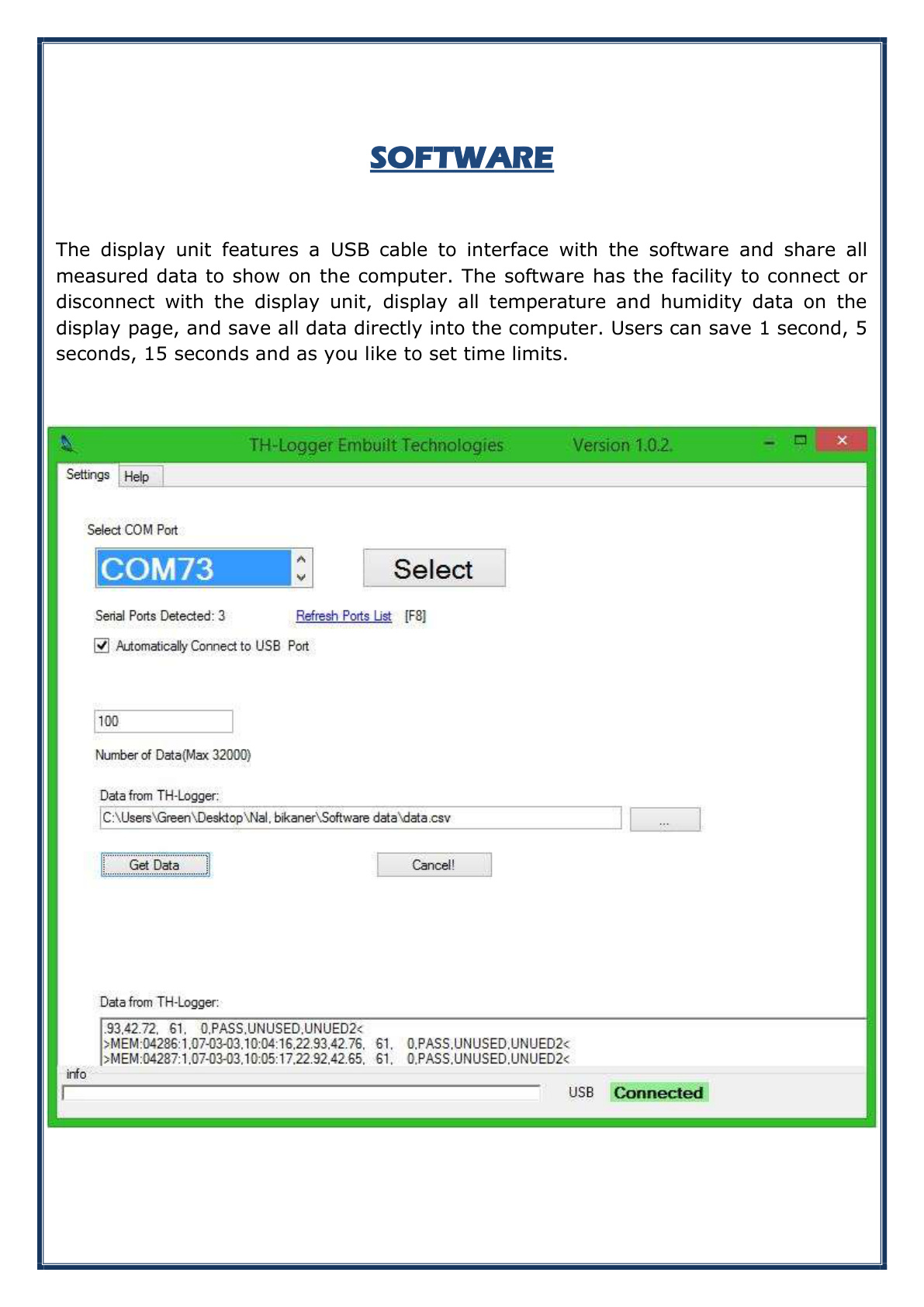

• SOFTWARE
• The display unit features a USB cable to interface with the software and share all
• measured data to show on the computer. The software has the facility to connect or
• disconnect with the display unit, display all temperature and humidity data on the
• display page, and save all data directly into the computer. Users can save 1 second, 5
• seconds, 15 seconds and as you like to set time limits.

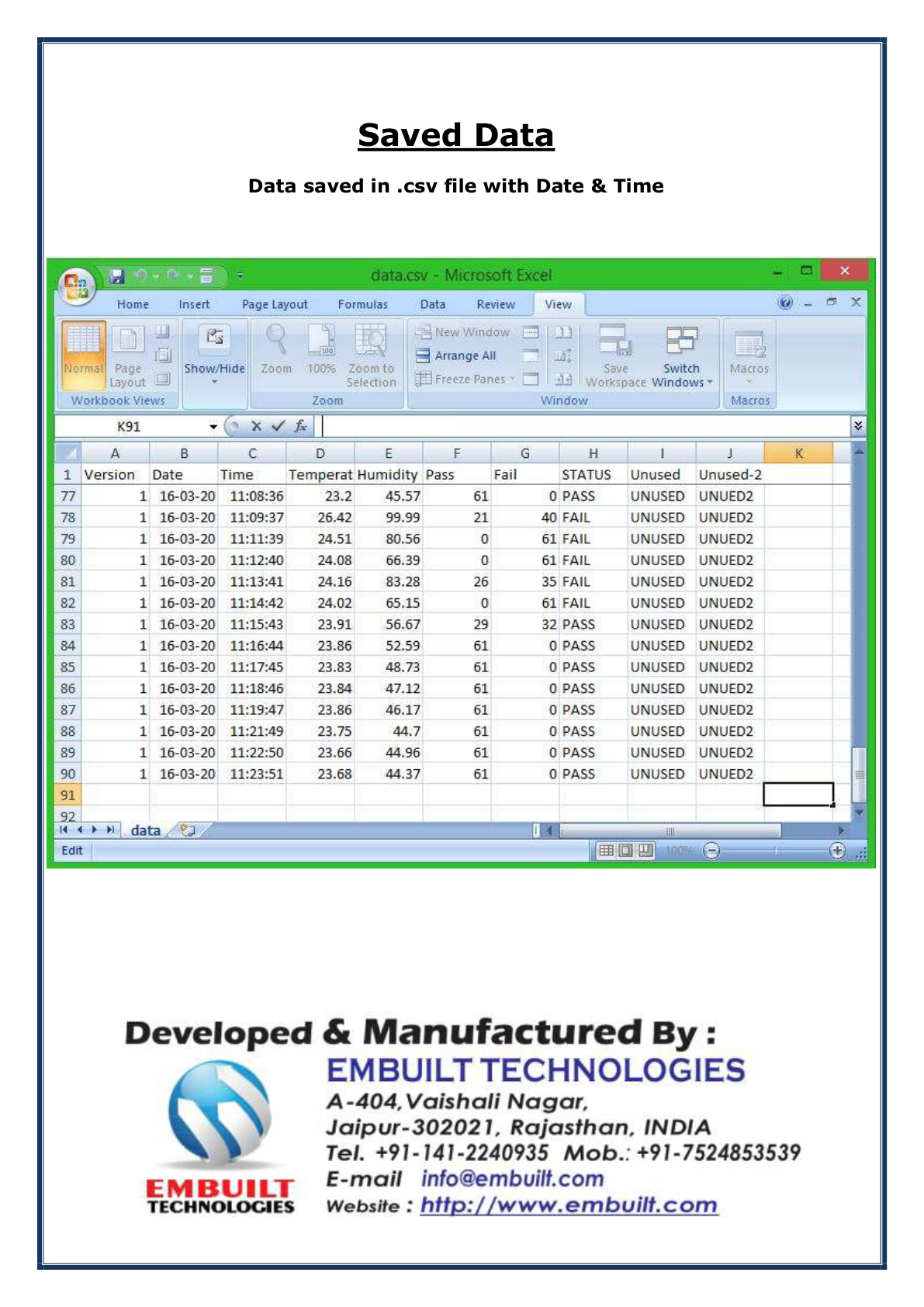

• Saved Data
• Data saved in .csv file with Date & Time
