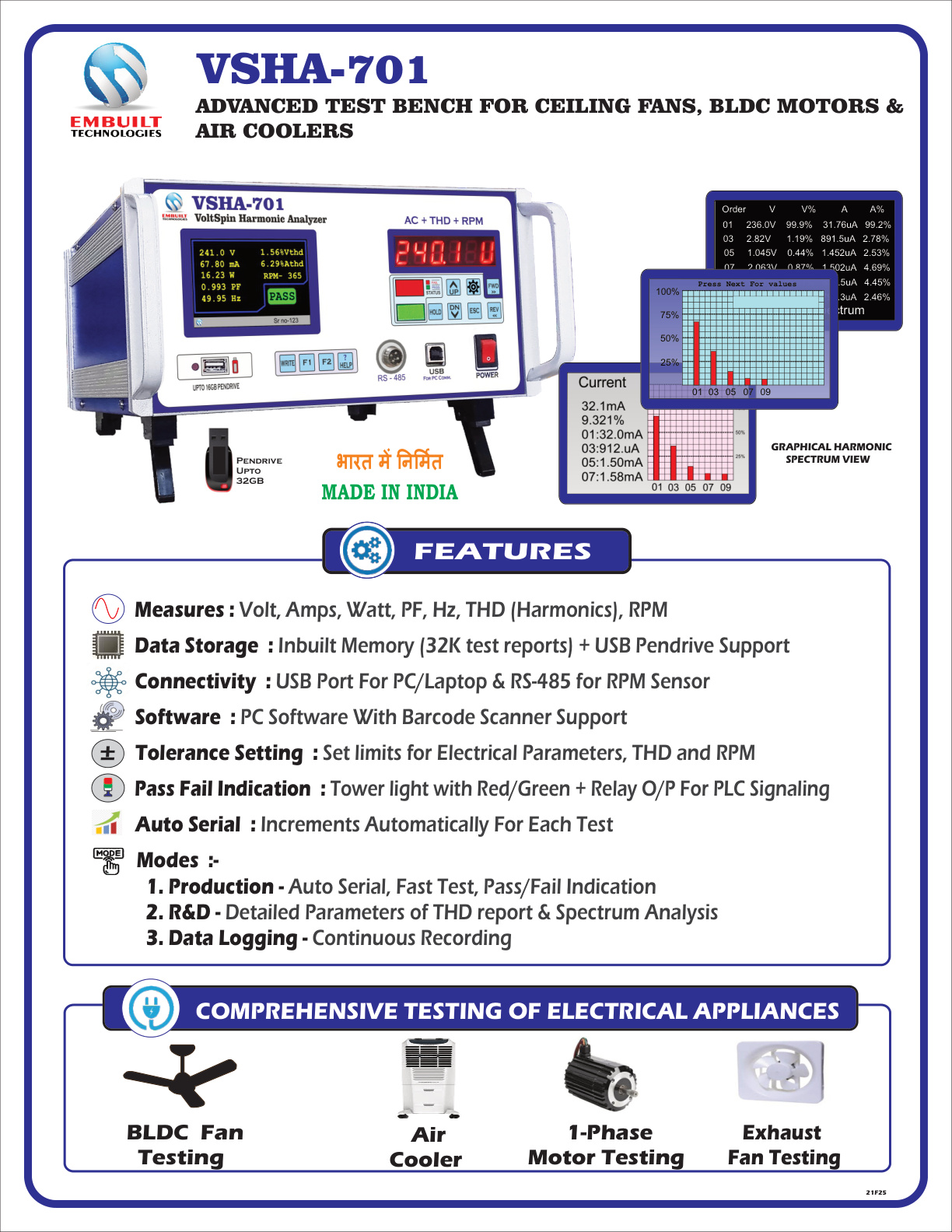

VSHA-701

Key Features & Introduction

• Measures : Volt, Amps, Watt, PF, Hz, THD (Harmonics), RPM
• Data Storage : Inbuilt Memory (32K test reports) + USB Pendrive Support
• Connectivity : USB Port For PC/Laptop & RS-485 for RPM Sensor
• Software : PC Software With Barcode Scanner Support
• Tolerance Setting : Set limits for Electrical Parameters, THD and RPM
• Pass Fail Indication : Tower light with Red/Green + Relay O/P For PLC Signaling
• Auto Serial : Increments Automatically For Each Test
• Modes :-
• 1. Production - Auto Serial, Fast Test, Pass/Fail Indication
• 2. R&D -
• Detailed Parameters of THD report & Spectrum Analysis
• 3. Data Logging -
• Continuous Recording
• VSHA-701
• ADVANCED TEST BENCH FOR CEILING FANS, BLDC MOTORS &
• AIR COOLERS
• Pendrive
• Upto
• 32GB
• BLDC Fan
• Testing
• 1-Phase
• Motor Testing
• Exhaust
• Fan Testing
• GRAPHICAL HARMONIC
• SPECTRUM VIEW
• Order V V% A A%
• 01 236.0V 99.9% 31.76uA 99.2%
• 03 2.82V 1.19% 891.5uA 2.78%
• 05 1.045V 0.44% 1.452uA 2.53%
• 07 2.063V 0.87% 1.502uA 4.69%
• 09 0.987V 0.41% 891.5uA 4.45%
• 11 1.015V 0.42% 790.3uA 2.46%
• Calculating Spectrum
• Press Next For values
• 100%
• 01 03 05 07 09
• 21F25

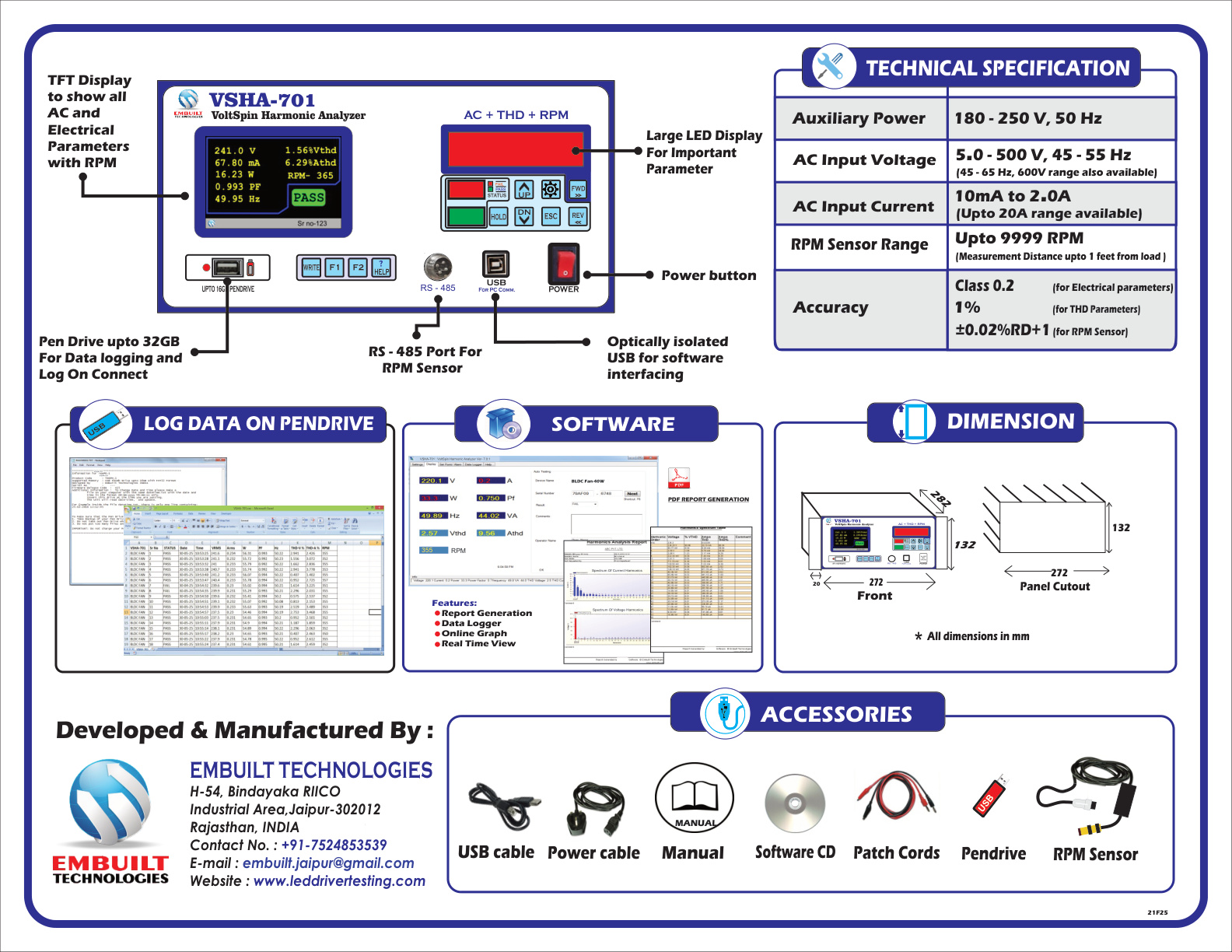

• COMPREHENSIVE TESTING OF ELECTRICAL APPLIANCES
• Cooler
• Front
• Panel Cutout
