ATRI-3 Catalog Automatic Turns Ratio Instruments, Ratio 2-200
This is a Legacy Product.
comes with 10 meter long cables for both HT and Lt
Injects LV and measures on both LV and HV , using four wire method to determine: Ratio, Polarity, Deviation, Excitation Current
Download Brochure
Datasheet & User guide
1 Year Warranty Against Manufacturing Defects
Standard coverageShips within Two days of Confirmed Order
Global delivery09:00 AM - 05:30 PM (Mon-Sat)
Expert assistanceProduct Overview

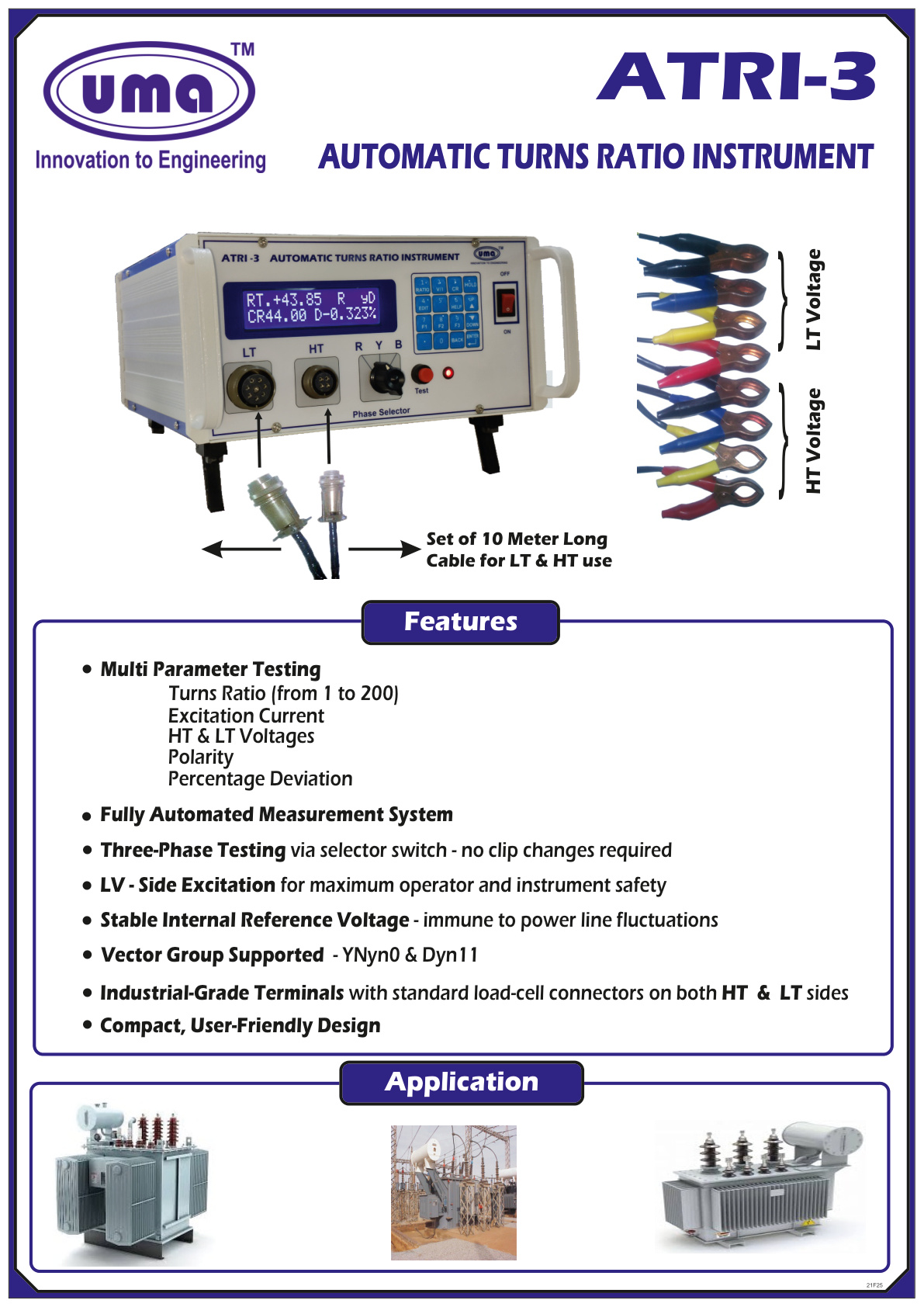

Official Catalog
Download PDF
Key Features & Introduction
- Fully Automated measurement of Ratio, HT LT voltage, excitation current, polarity.
- Display- 16X2 Blue moon Monochrome Display
- Sensing and Excitation Terminal for LT Voltage
- Sensing Terminal for HT Voltage
- Selector Switch knob is provide to test turns ratio of three phase transformer without changing clip.
- ON/OFF Switch for applying test voltage
- LED indication for excitation
- Aux. ON./OFF Switch
- 4X4 Keypad
- protection. - 1A Fuse is incorporated with in fuse holder for Aux. Supply - 230V AC ± 20%
- HT & LT Cable - 10 mtr
Technical Specifications
Technical Specifications
Parameters- Turns Ratio, Percentage Deviation, Vector Group, Excitation Current, HT & LT Voltages and Polarity.
Principle- Applying test Voltage to the Low Voltage Winding of a transformer and accurately measures the resulting voltage from the high voltage winding.
Excitation Voltage and Current- 2.2 V AC, 100Hz. Max 500mA.
Accuracy- Class 0.1
Vector Group- YNyn0 & Dyn11
Range (Ratio)- 1 to 200.
Weight (Approx.)- 3.2 KG
Dimension- Front -131 (H) 280(W) 280(D) (mm)
Test Transformer- Up-to 25 MVA
