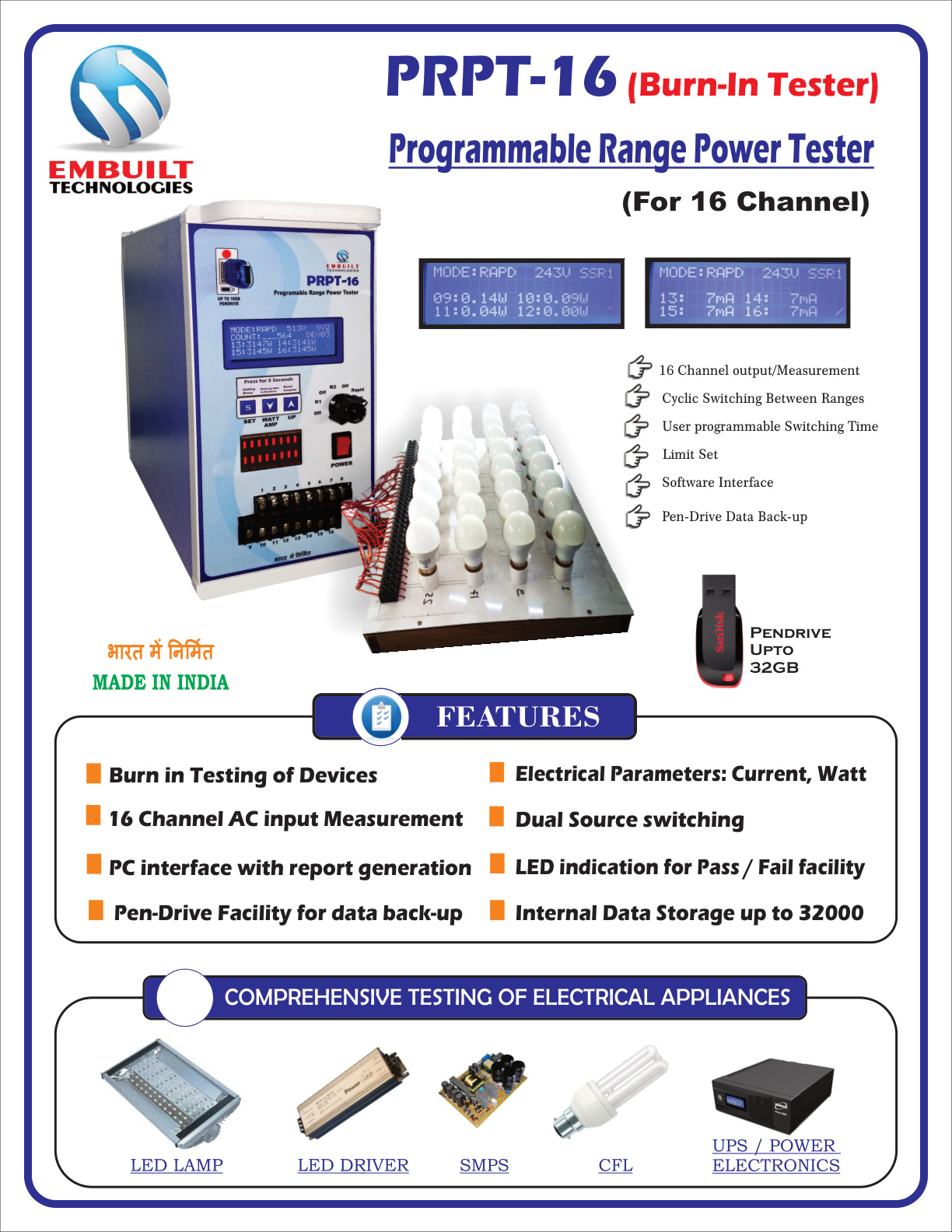

PRPT16Catalog

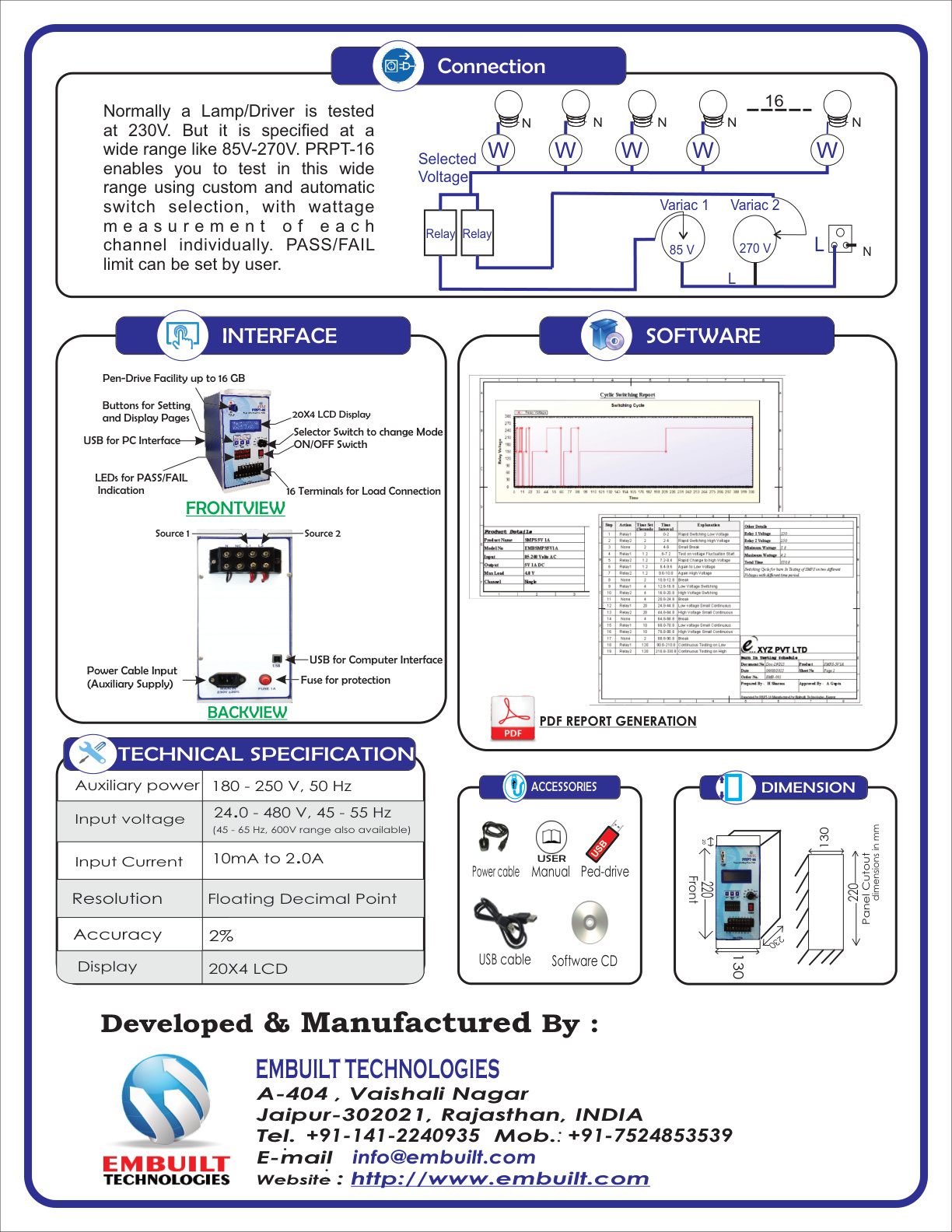

Technical Specifications

• Input Current
• 24.0 - 480 V, 45 - 55 Hz
• Input voltage
• (45 - 65 Hz, 600V range also available)
• Display
• 20X4 LCD
• Resolution
• Floating Decimal Point
• Accuracy
• Normally a Lamp/Driver is tested
• at 230V. But it is specified at a
• wide range like 85V-270V. PRPT-16
• enables you to test in this wide
• range using custom and automatic
• switch selection, with wattage
• m e a s u r e m e n t o f e a c h
• channel individually. PASS/FAIL
• limit can be set by user.
• Relay Relay
• Selected
• Voltage
• 85 V
• 270 V
• Variac 1
• Variac 2
• Connection
• INTERFACE
• Selector Switch to change Mode
• ON/OFF Swicth
• 16 Terminals for Load Connection
• LEDs for PASS/FAIL
• Indication
• USB for PC Interface
• Buttons for Setting
• and Display Pages
• 20X4 LCD Display
• Pen-Drive Facility up to 16 GB
• USB for Computer Interface
• FRONTVIEW
• USER
• Power cable
• Manual
• Software CD
• USB cable
