DPA-1i Digital Power Analyzer
The DPA-1i is a advanced digital power analyzer designed for precise measurement and analysis of electrical parameters in single-phase systems. It offers comprehensive testing capabilities for a wide range of electrical devices and equipment.
Key Features
- High precision measurements
- Wide measurement range
- Harmonics analysis
- Data logging capabilities
- User-friendly interface
Measurement Parameters
| Parameter | Measurement Range | Accuracy |
|---|---|---|
| Voltage (V) | 0-300V | ±0.5% |
| Current (A) | 0-10A | ±0.5% |
| Power (W) | 0-3000W | ±1.0% |
| Power Factor | 0.000-1.000 | ±1.0% |
| Frequency (Hz) | 45-65Hz | ±0.1% |
Technical Specifications
- Display: High-resolution color LCD
- Harmonics Analysis: Up to 50th order
- Memory: Internal storage for 10,000 measurements
- Interfaces: USB, RS485, Ethernet
- Power Supply: 100-240V AC, 50/60Hz
- Operating Temperature: 0-40°C
- Storage Temperature: -20-70°C
Applications
- Quality control in manufacturing
- Research and development
- Energy auditing
- Electrical equipment testing
- Compliance testing
DPA-1i Resources
Related Products
DTM-1
Digital Tester for LED Drivers
.webp)

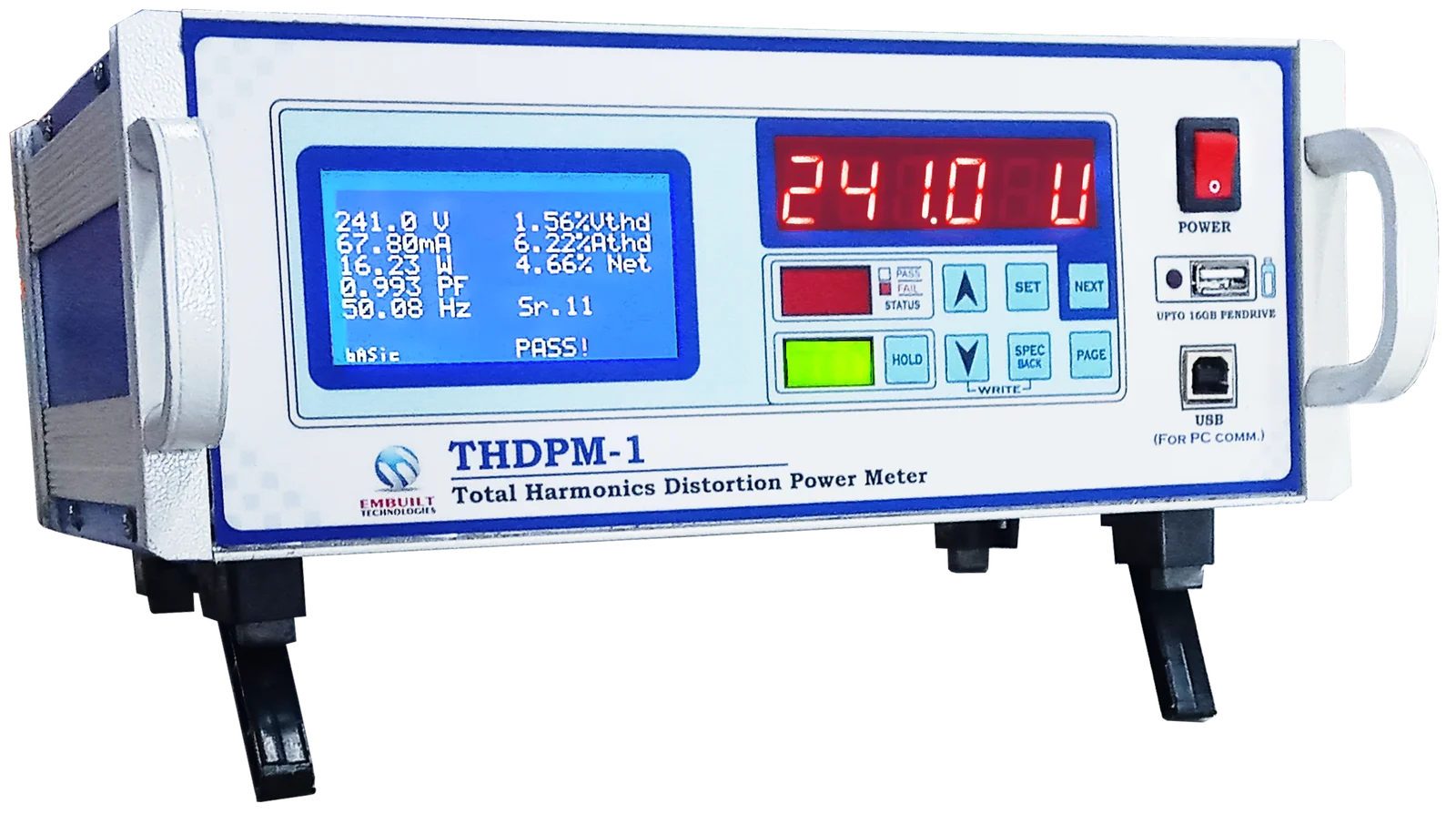

THDPM-1
