Laptop Adapter Testing
WE ARE TESTING A LAPTOP ADAPTER AT 220 VOLTS UPS AC INPUT. WE ARE USING EMBUILT SPEA-1 TO TEST THE ADAPTER PROPERTIES.

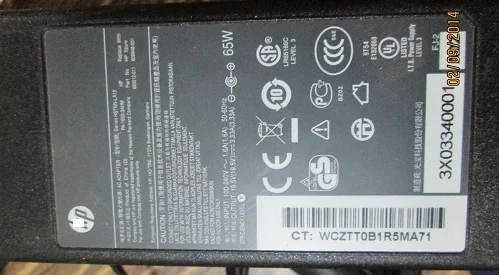

Laptop Adapter Specifications:
100-240 Volts AC, 1.6A, 50-60Hz
Testing of Laptop Adapter using SPEA-1 (Main Page)
Test Results
When power is on the following results are found:
- Vrms: 217.8 Volts
- Arms: 376.6mA
- Watt: 59.36Watt
- VTHD%: 8.7%
- ATHD%: 82.6%
- V3rd Harmonics Value: 15.67 Volts
Analysis: Here we can see that VTHD is 8.7% which means UPS Supply has 8.7% distortion in Voltage. It also effect the wave form of UPS Supply or we can say that Voltage waveform is not 100% sine wave (Ideal condition).
ATHD % is 82.6 which means Laptop Adapter distorted the AMPS waveform by 82.6 %. It also has effect of Voltage THD.
We can also see the 3rd harmonics of Voltage is 15.67 Volts.

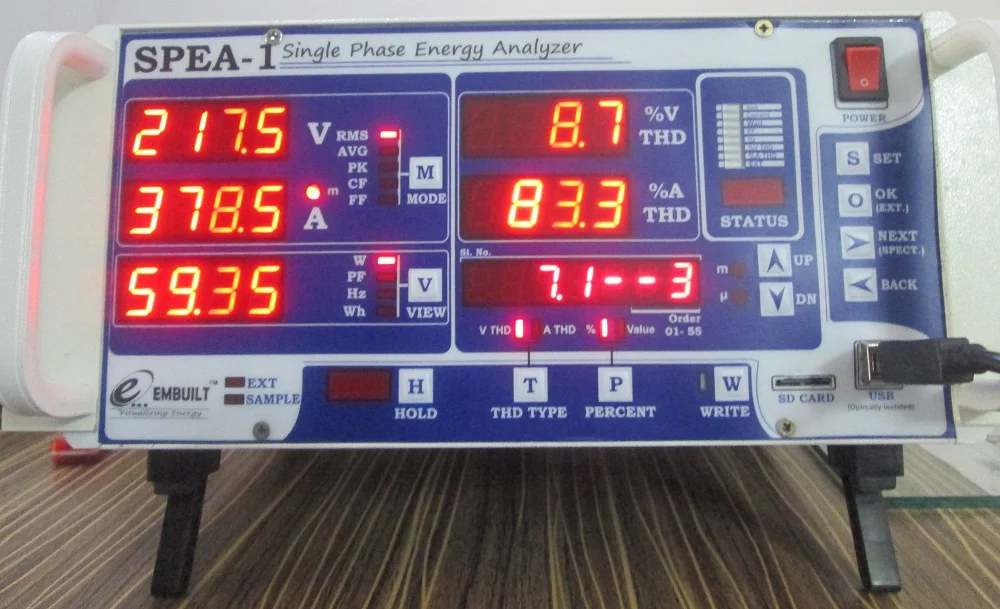

Voltage 3rd Harmonics Analysis
Here we can see the 3rd harmonics of voltage in % of first harmonics. 3rd Voltage harmonics is 7.1% of Vrms Harmonics.
Note: Here we note that ideally first harmonics is to be equal of Vrms and other order harmonics are to 0.
So we need to minimize the harmonics.
Amps (Current) 3rd Harmonics Analysis
Here we can see the 3rd harmonics Value of Amps. It is 215.01mA it has another waveform with Amps(Current) level of 215.01mA.
AMPS (Current) 3rd Harmonics Display of SPEA-1 for Laptop Charger
In the above image 3rd Harmonics of Amps shows in display 6. It is 57.1% of Arms (378.1mA).
Other parameters can also be seen on SPEA-1.
SPEA-1 Software for Analysis and Testing of Laptop Charger (Laptop Adapter)
Software is connected to SPEA-1 for real time data viewing and reporting.
Harmonics Spectrum Analysis
Voltage Harmonics Spectrum by SPEA-1 Software for Laptop Adapter (Charger)
Above is the voltage harmonics spectrum. All values are given in % of Vrms.

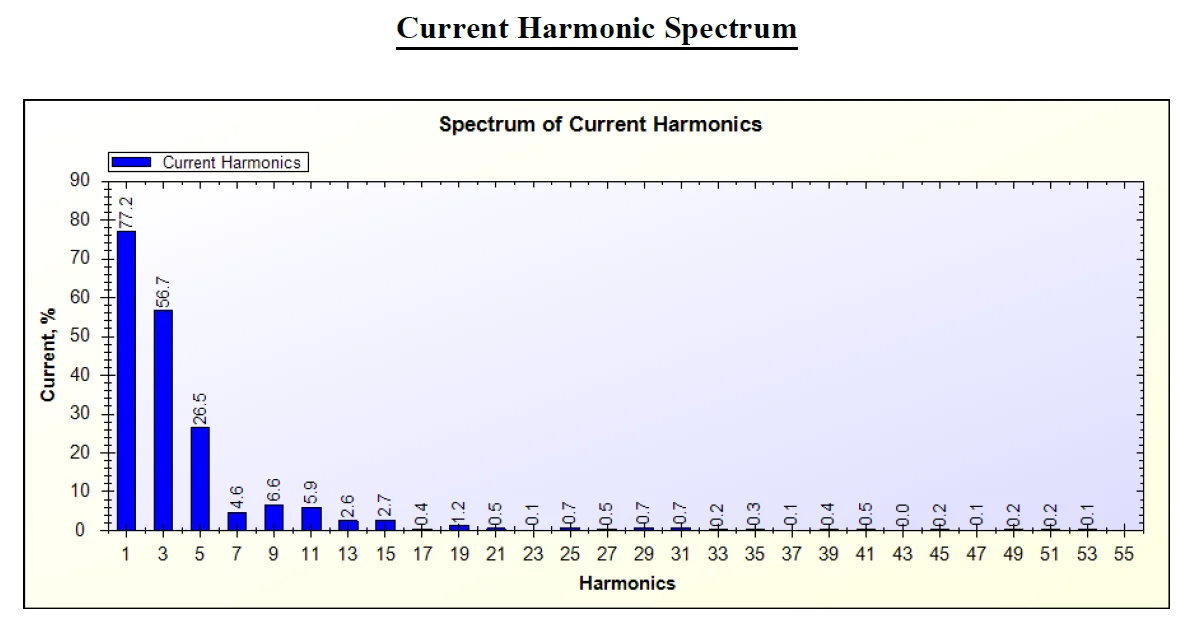

AMPS (Current) Harmonics Analysis by SPEA-1 Software for Laptop Adapter
Above is the Amps(Current) harmonics spectrum. All values are given in % of Arms.
Harmonics Report
Harmonics report is also generated which contains the parameter values with Harmonics spectrum.
