Working Modes Of SDPA-3
The SDPA-3 Solar DC Power Analyser has 8 distinct working modes to test various solar power system configurations and scenarios.

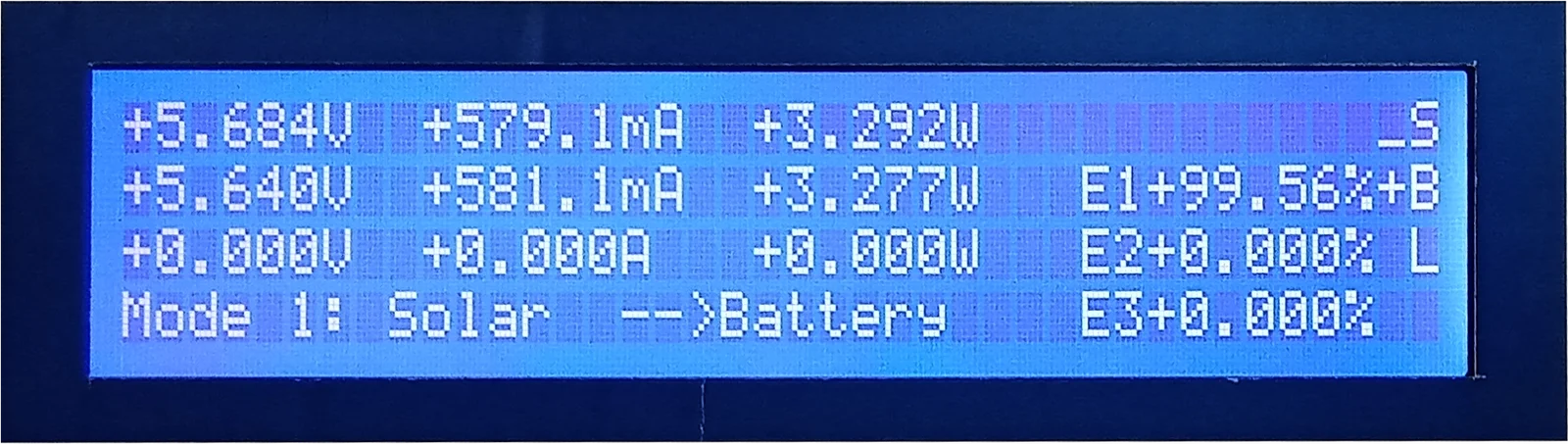

Mode 1: Solar to Battery Charging
Description
- Solar Power ON
- Load OFF or disconnected
- E1 shows charging efficiency

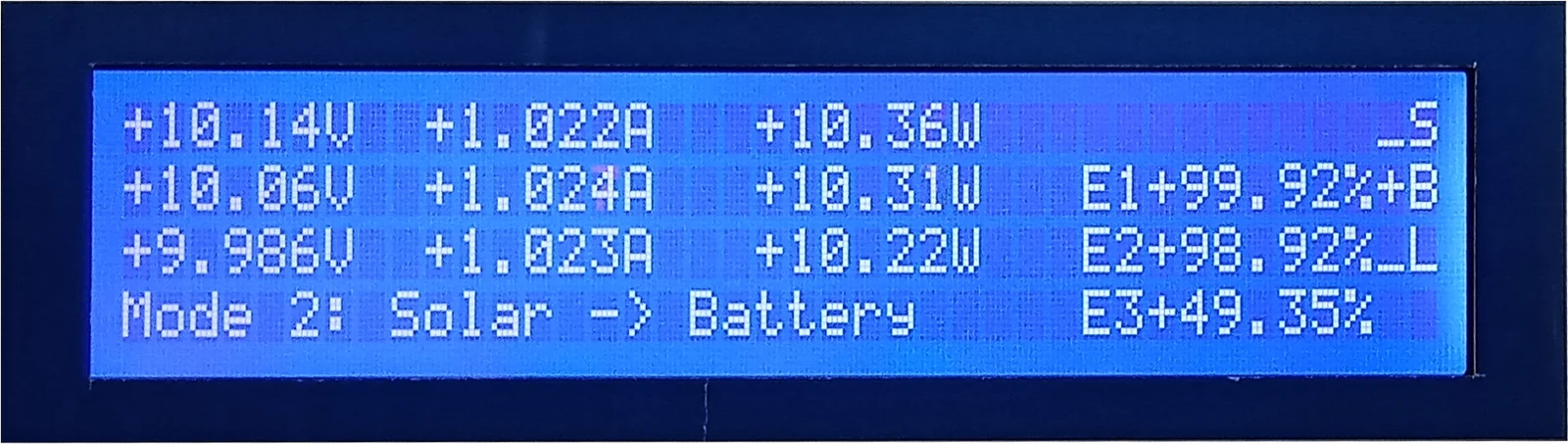

Mode 2: Solar to Battery Charging & Load ON
Description
- Solar supply power to battery and load both
- E1 shows battery charging efficiency
- E2 shows battery to load efficiency
- E3 shows load efficiency with solar + battery

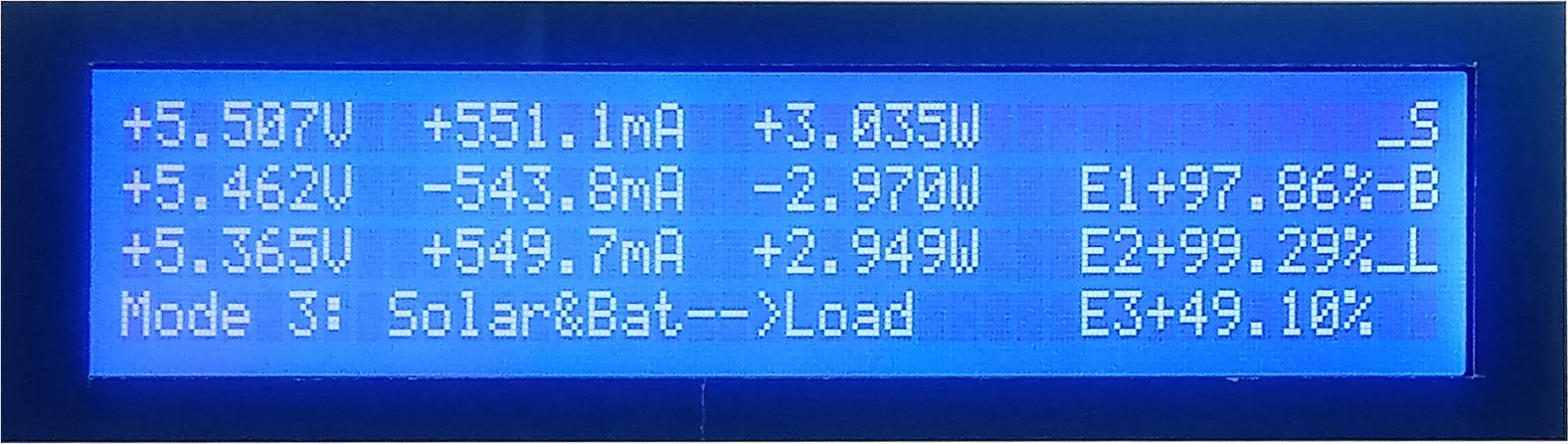

Mode 3: Solar and Battery Supply Power to Load
Description
- Solar ON and Battery discharge
- E1 shows battery to solar efficiency
- E2 shows battery to load efficiency
- E3 shows load efficiency with solar + battery
Mode 4: Battery to Load
Description
- Solar OFF or disconnected
- Battery power supply to the load
- E2 shows battery to load efficiency

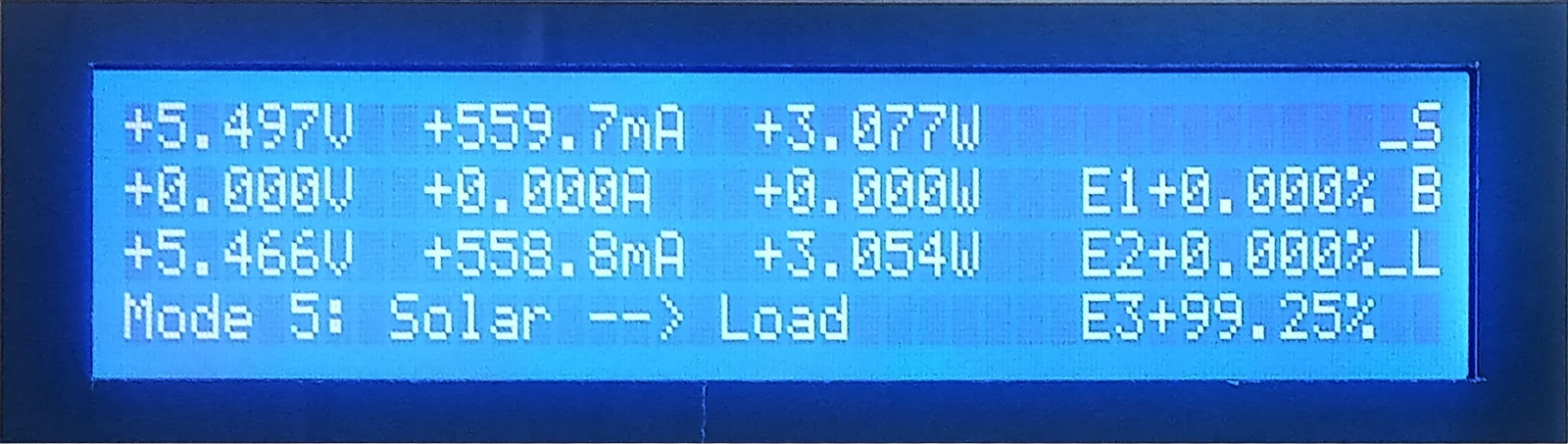

Mode 5: Solar to Load
Description
- Solar power supply to the load
- E3 shows solar to load efficiency

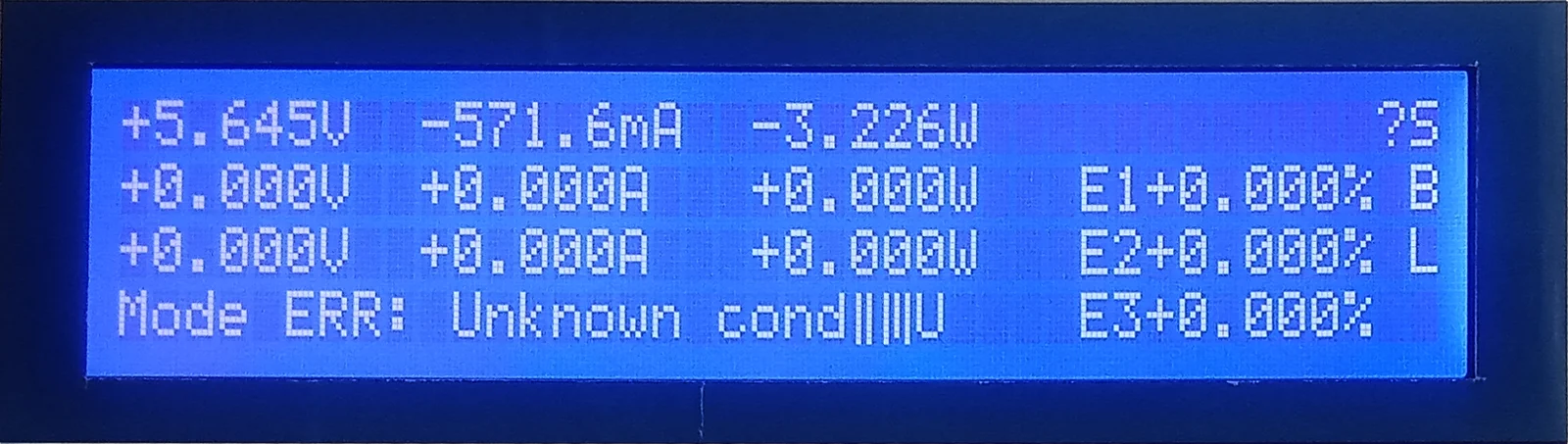

Mode 6: Battery Discharge when Solar & Load both OFF
Description
- Battery Connected and solar & load OFF
- Battery discharge due to driver power consumption

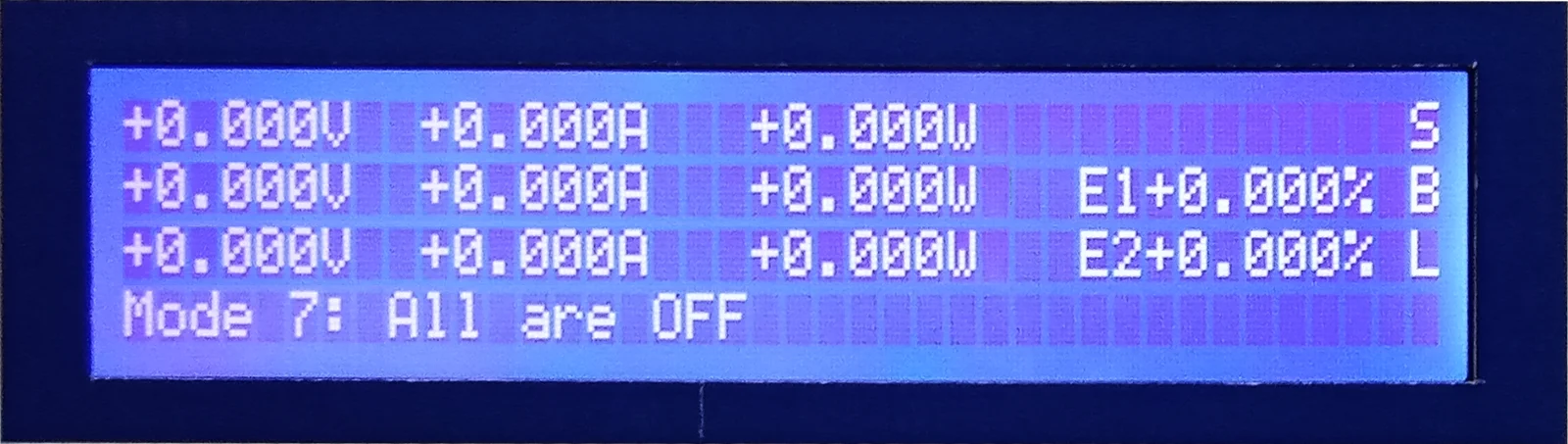

Mode 7: All are OFF
Description
- All are disconnected with meter
Mode 8: Error
Description
- The error shows when Terminal Connection not proper
- Modes show an error when condition not match
