TRM-1A
Hot
Transformer Testing

TRM-1A

IN STOCK
(4.8 Reviews)

TRM-1A - High quality industrial instrument from Embuilt Technologies.

Ask Experts
Download Brochure

Technical datasheet & User guide

1 Year Warranty Against Manufacturing Defects
Standard coverage
Ships within Two days of Confirmed Order
Global delivery
09:00 AM - 05:00 PM (Mon-Sat)
Expert assistance

Product Overview

Official Catalog

Download PDF
TRM-1A_Catalog.pdf Page 1

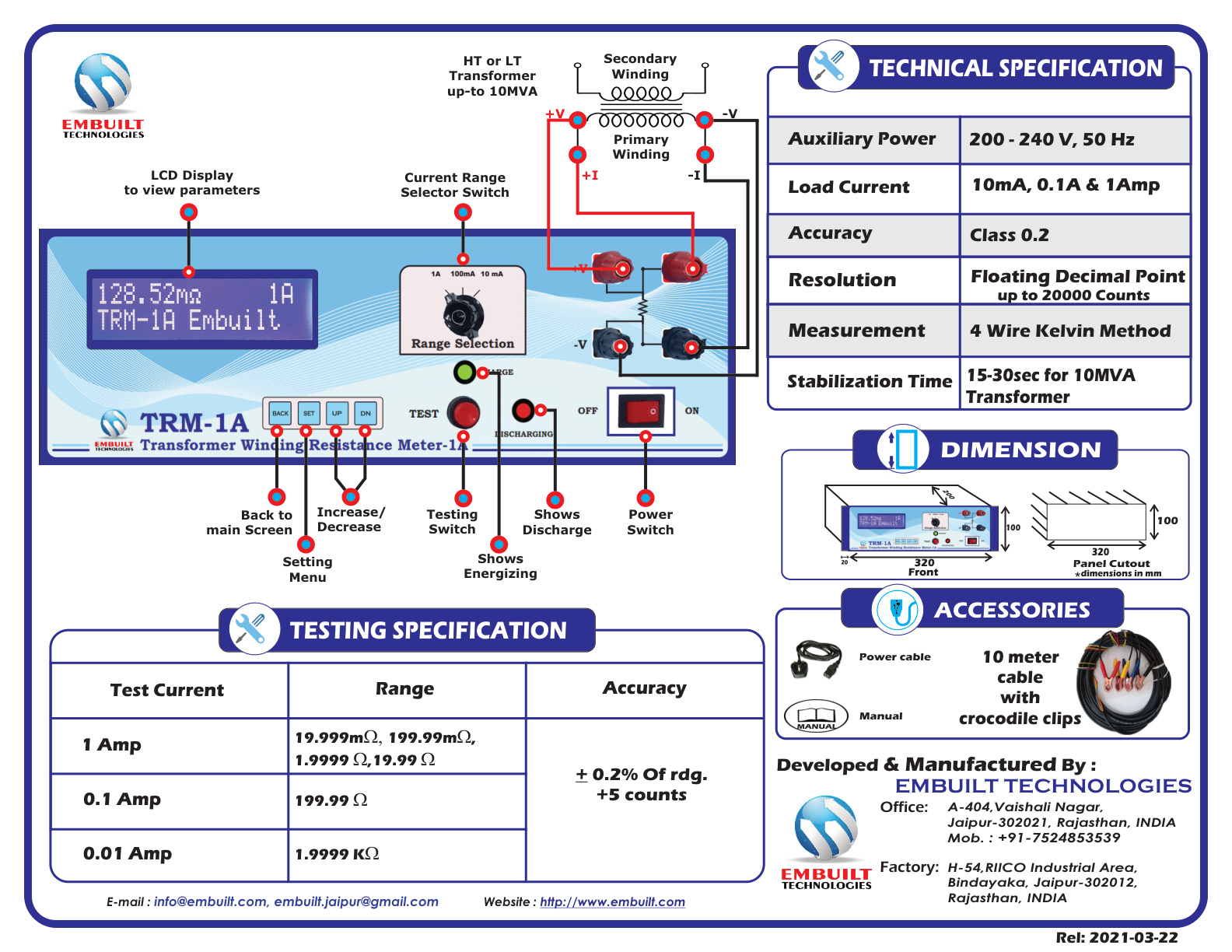

TRM-1A_Catalog.pdf Page 2
Key Features & Introduction
  • Transformer Winding Resistance Meter
  • TRM-1A
  • COMPREHENSIVE TESTING OF ELECTRICAL MACHINES & WINDINGS
  • Parameters : 2m to 2K
  • Big LCD Display For Clear View
  • Ideal For Transformer Winding
  • Testing up to 10MVA(Both LT/HT)
  • Fast & Stable Result
  • Protection Against Inductive Kick-back
  • Winding Testing Current Range
  • 10mA, 0.1A & 1Amp
  • Fully Digital Circuit
  • No Balancing Required
  • Auto Ranging For Highest Resolution
  • Open Circuit Voltage 22V + 2V DC

Technical Specifications

Technical Specifications
  • Resolution
  • Floating Decimal Point
  • up to 20000 Counts
  • Accuracy
  • Class 0.2
  • Load Current
  • 10mA, 0.1A & 1Amp
  • Stabilization Time 15-30sec for 10MVA
  • Transformer
  • Measurement
  • 4 Wire Kelvin Method
